45V VIN, Micropower, Low Noise, 200mA LDO with Output Discharge
Published: Jun 24,201420 Read

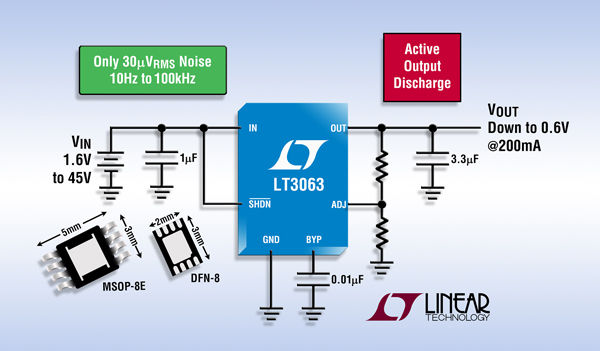

The LT3063 is a micropower, low dropout (LDO) linear regulator that operates over a 1.6V to 45V supply range. The device supplies 200mA of output current with a typical dropout voltage of 300mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality.
40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package
Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...
Dual Input Prioritizer Provides Low Quiescent Current Backup Supply Switchover Solution
Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTC4418, a dual input power prioritizer for 2...
The LT3063’s quiescent current is merely 45μA and provides fast transient response with a minimum 3.3μF output capacitor. In shutdown, quiescent current is less than 3μA and the reference soft start capacitor is reset.
The LT3063 features an NMOS pull-down that discharges the output if SHDN or IN is driven low.
Internal protection circuitry includes reverse-battery protection, reverse-current protection, current limit with foldback and thermal shutdown.
The LT3063 is available as an adjustable device with an output voltage range from the 600mV reference up to 19V. The LT3063 is offered in the thermally enhanced 8-lead 2mm × 3mm DFN and MSOP packages.
Features:
－ Input Voltage Range: 1.6V to 45V
－ Output Current: 200mA
－ Output Discharge
－ Quiescent Current: 45μA
－ Dropout Voltage: 300mV
－ Low Noise: 30μVRMS (10Hz to 100kHz)
－ Adjustable Output (VREF = 600mV)
－ Output Tolerance: ±2% Over Load, Line, and Temperature
－ Single Capacitor Soft-Starts Reference and Lowers Output Noise
－ Shutdown Current < 3μA
－ Reverse Battery Protection
－ Current Limit Foldback and Thermal Limit Protection
－ 8-Lead 2mm × 3mm DFN and MSOP Packages
