Vishay Extends Long Side Termination Thick Film Chip Resistors to 0406 and 1225 Cases

Published: Jul 02,2014

43 Read

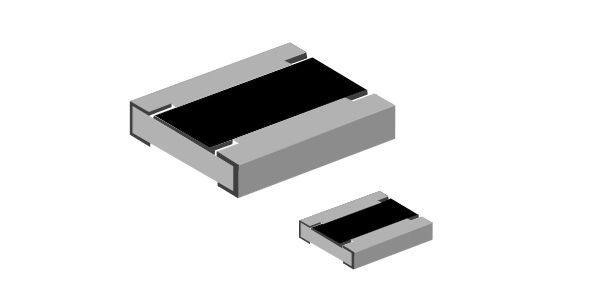

Vishay Intertechnology, Inc. announced that it has extended its RCL e3 series of long side termination thick film chip resistors with new devices in the 0406 and 1225 case sizes. For automotive electronic circuits and general purpose applications, the RCL0406 e3 and RCL1225 e3 offer enhanced thermo cycling performance and provide increased power ratings to 0.25 W and 2.0 W, respectively.

More on This

New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices

Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...

Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size

Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

Qualified to AEC-Q200 Rev. C, RCL e3 resistors feature wide terminals that enable high power dissipation. Their small 0406, 0612, 1218, and 1225 case sizes save space on densely packed PCBs and allow a higher number of temperature cycles, thus improving solder-joint reliability. The devices offer tolerances of 1 % and 5 %, TCR of ± 100 ppm/K and ± 200 ppm/K, and a resistance range from 1Ω to 2.2 MΩ.

RCL e3 resistors resistors feature a protective overglaze and pure tin solder contacts on a nickel barrier layer for compatibility with lead (Pb)-free and lead-containing soldering processes. The devices are compliant to RoHS directive 2011/65/EU and halogen-free according to the JEDEC JS709A definition.
