Infrared Receivers Simplify Designs and Lower Costs for Data Transmission
Published: Jul 09,201419 Read

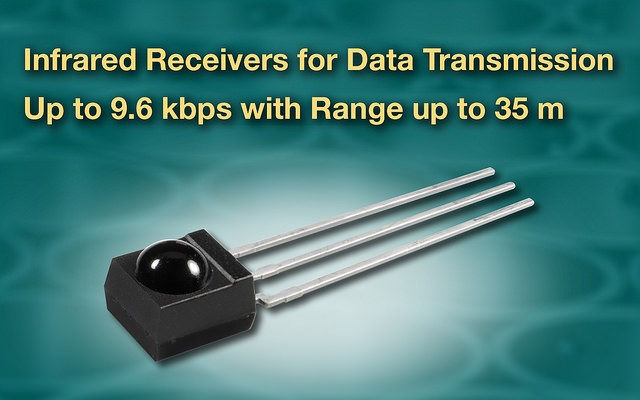

Vishay Intertechnology has broadened its optoelectronics portfolio with the release of two new miniaturized infrared (IR) receivers designed specifically for low-speed data transmission. The TSDP34138/56 and TSDP34338/56 are optimized for low-complexity, low-cost signaling in metering, sensor, automation, and gaming applications.
New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices
Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...
Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size
Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...
Specified for operation from 2.5 V to 5.5 V, with a low 0.35 mA supply current at 3.3 V, the Vishay Semiconductors receivers released today each consist of a photodiode and preamplifier assembled on a lead frame. The devices' epoxy package — measuring 6.0 mm by 6.9 mm by 5.6 mm — acts as an IR band pass filter for use with inexpensive 940 nm IR LEDs.
Using amplitude-shift keyed (ASK) on-off modulated 38.4 kHz or 57.6 kHz signals from an emitter with a 250 mW/sr irradiance, the TSDP34138/56 and TSDP34338/56 achieve continuous data transmission up to 7.8 kbps over a range up to 35 meters. In addition, the receivers provide shielding against EMI, immunity against ambient light, and are insensitive to supply voltage ripple and noise from CFL lamps.
Data transmission is a central element in a wide range of electronics. As an alternative to radio frequency (RF) transmission, the use of IR components such as the TSDP34138/56 and TSDP34338/56 simplifies designs, lowers costs, and eliminates the need to obtain regulatory approvals. In addition, by requiring line-of-sight, IR enhances privacy and minimizes interference with adjacent systems.
The TSDP34138/56 and TSDP34338/56 are RoHS-compliant, halogen-free, and Vishay GREEN.
FEATURES:
- Very low supply current
- Continuous data rates up to 7777 bps
- Range up to 32 m
- Photo detector and preamplifier in one package
- Internal filter tuned to 38.4 kHz for 4800 bps or 57.6 kHz for 9600 bps
- Shielding against EMI
- Supply voltage: 2.5 V to 5.5 V
- Immunity against ambient light
- Insensitive to supply voltage ripple and noise
