This all-in-one industrial-touch panel PC is equipped with a 5:4 aspect ratio flush, flat resistive touch panel or projected capacitive touch panel with 350nits brightness. The panel system offers a slim design and flexible architecture for fast system deployment and supports noiseless operation. Its wide operating temperature range (-10°C to +50°C) offers great reliability for operations in harsh environments.

Its waterproof enclosure (IP65 front bezel) protects the system from liquid damage. The GOT3177T-834 is an excellent human machine interface platform for applications in automation, transportation, oil pipe monitoring systems, self-service kiosk, and environmental monitoring.

The GOT3177T-834 is a low-power consumption panel PC. Its Intel Bay Trail-D Celeron quad-core processor J1900 at 2.0GHz can handle multiple tasks or heavily multi-threaded applications. Its enabled SSE4.1 and SSE4.2 instructions and virtualization feature help enhance performance of virtualized programs.

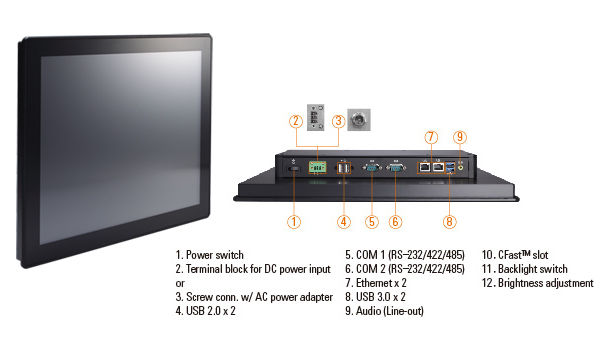

This exceptional 17” touch panel PC supports one DDR3L SO-DIMM slot with up to 8GB memory and feature one 2.5" SATA HDD and CFast socket. To meet different application needs, the GOT3177T-834 has rich I/O interfaces, including two RS-232/422/485 ports, two Gigabit LANs, two USB 3.0 ports, and two USB 2.0 ports. It also has two PCI Express Mini Card slots for wireless network connection or mSATA storage.

“Axiomtek’s GOT3177T-834 comes with an easy-to-deploy modularized design and advanced multi-touch control. It supports WLAN and 3G antennas for wireless connection and offers dual high speed Gigabit Ethernet ports. This feature-rich panel PC also features USB 3.0 drives, which is ten times faster than USB 2.0. Its fast USB 3.0 ports help make mobile operating system installation and maintenance easy, via the use of a thumb drive,” said Ivy Lee, product manager of Product Marketing Division at Axiomtek.

The super slim human machine interface can be panel or wall mounted. It also comes with an optional VESA arm or a desktop stand. This panel PC is CE certified and ready for Windows 8 and 7 (64bit).

Features:

－ 17-inch GOT3177T-834- SXGA (1280 x 1024) color TFT LCD display with modularized design

－ Fanless cooling system with Intel Bay Trail-D Celeron Processor J1900 4C at 2.0GHz

－ Supports one 2.5” SATA HDD, one CFast socket or one mSATA

－ Supports WLAN/3G antenna (optional)

－ Supports two USB 3.0 ports, two USB 2.0 ports and two COM ports

－ Supports two PCI Express Mini Card

－ Supports panel mount, wall mount, VESA arm, and desktop stand

－ Supports wide temperature range of -10°C to +50°C and IP65 front bezel
