Avalue announces Haswell-Refresh Platform products
Published: Sep 12,201423 Read

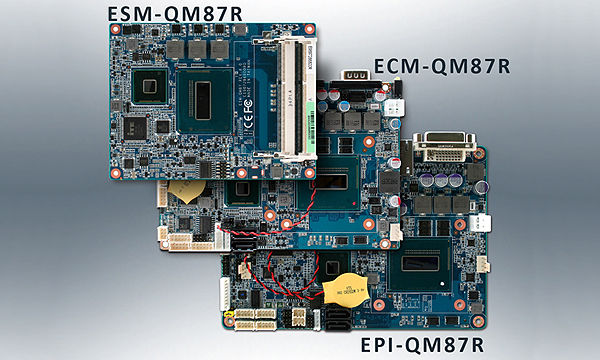

Avalue Technology Inc., is introducing the 3.5” board ECM-QM87R, EPIC board EPI-QM87R and System-on-module ESM-QM87R which are based on the 4th generation Intel Core Haswell–Refresh i5/i3 Processors and the mobile Intel QM87 Express chipset. Compared with the 4th generation Intel Core processor family, the Haswell–Refresh i5/i3 Processors shows improvements in performance and clock speed.
Avalue Is Bringing the New Embedded Single Board Computers
TAIPEI, TAIWAN–Avalue Technology is bringing the new embedded single board computers, ECM-EHL, with Intel® Pentium®/...
Avalue Brings AIoT to Taipei City with Innodisk Partnership
TAIPEI, Taiwan – Avalue Technology Inc. announced today a new partnership with Innodisk, with the goal of bringing AIoT to Taipei City streets...
ECM-QM87R supports one 204-pin DDR3L SODIMM memory with up to 8GB DDR3 1333/1600 SDRAM, offers a multiplicity of I/O involving 1 x RS-232, 1 x RS-232/ 422/ 485, 2 x SATA III, 1x Mini PCIe supporting mSATA expansion, 6 x USB 3.0, 2 x USB 2.0 and 4-bit GPI, 4-bit GPO among others.
ECM-QM87R has dual Gigabit Ethernet: 1x Intel I210AT Gigabit Ethernet Controller & 1x Intel I217LM Gigabit Ethernet PHY, dual-channel 18/ 24-bit LVDS interface and supports three displays with resolutions of VGA mode: 1920 x 1200 @ 60Hz, HDMI mode: 4000 x 2000 @ 25Hz and LVDS mode: 1920 x 1080 @ 60Hz. Audio interface is provided with 1x Realtek ALC892 Supporting 5.1-CH HD codec.
ECM-QM87R supports Intel Active Management Technology 9.0 for managing and securing PCs. ECM-QM87R is focusing on portable equipment, industrial HMIs, security and surveillance, digital Signage, retail, medical and in-vehicle infotainment.
EPI-QM87R supports one 204-pin DDR3L SODIMM memory with up to 8GB 1.35V DDR3L 1333/1600 SDRAM, offers a multiplicity of I/O involving 4 x COM, 2 x SATA III, 1 x Mini PCIe supporting mSATA expansion, 6 x USB 3.0, 2 x USB 2.0 and 4-bit GPI, 4-bit GPO among others.
EPI-QM87R has dual Gigabit Ethernet: 1x Intel I210AT Gigabit Ethernet Controller & 1x Intel I217LM Gigabit Ethernet PHY, dual-channel 18/ 24-bit LVDS interface and supports multiple displays as dual HDMI+LVDS/HDMI+LVDS+DVI or dual HDMI+CRT/HDMI+LVDS+CRT with resolutions of DVI mode: 1920 x 1200 @ 60Hz, HDMI mode: 4000 x 2000 @ 25Hz and LCD/Sinultanous mode: 1920 x 1080 @ 60Hz.
Audio interface is provided with 1x Realtek ALC892 Supporting 5.1-CH HD codec. EPI-QM87R supports Intel Active Management Technology 9.0 for managing and securing PCs. EPI-QM87R is focusing on portable equipment, industrial HMIs, security and surveillance, digital Signage, retail, medical and in-vehicle infotainment.
ESM-QM87R supports two 204-pin DDR3L SODIMM memories with up to 16GB 1333/1600 SDRAM. The I/O deployment includes 4 x SATA, 7 x PCIex1, 1 x PCIex16, 4 x USB 3.0, 8 x USB 2.0, 4-bit GPI, 4-bit GPO, SMBus and LPC.
ESM-QM87R has 1x Intel I217LM Gigabit Ethernet, dual-channel 18/ 24-bit LVDS interface and supports three independent displays as VGA + LVDS + DDI with resolutions of VGA mode: 1920 x 2000 @ 60Hz and LVDS mode: 1920 x 1200 @ 60Hz.
Audio interface is provided with 1x Intel QM87 express integrated HD audio. ESM-QM87R supports +9 ¡ã +19V wide range power input suitable for variety environments use. ESM-QM87R is focusing on digital signage, thin client, ATM, smart KIOSK, SMB storage appliance & surveillance and gamming industries.
