The New Cortex A9 Freescale i.MX6 Panel PC from IBASE

Published: Nov 13,2014

1072 Read

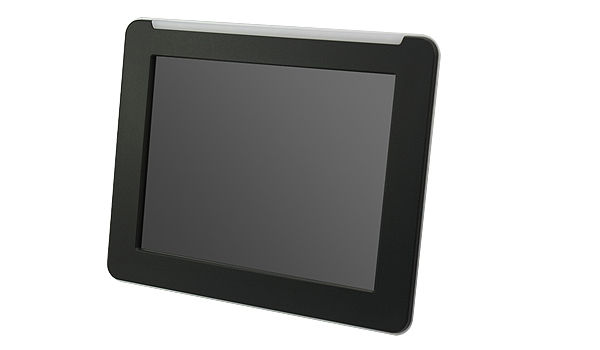

IBASE Technology presents the new ARM-based panel PC – MRS-801-RE, comprising an all-in-one panel PC with an 8” LCD display. The new product utilizes the single-core 1.0GHz Freescale i.MX6 solo in a fanless enclosure and is equipped with 1GB DDR3 memory to provide high-computing and reliable performance.

More on This

Fanless 4K Digital Signage Player with 8th Gen Intel Core U-Series Processors

IBASE Technology has rolled out the SI-642-N 4K digital signage player that leverages the 8th Gen Intel Core U-series processors...

IBASE Debuts OFP Series Full-Flat Open Frame Modular Panel PC

IBASE Technology debuts the OFP series open-frame panel PC that provides a flexible solution for seamless integration into kiosks, customized housings and wall mount...

The front bezel of MRS-801-RE has an IP65 rating to make it dust-tight and waterproof. It features a programmable LED light bar at the top front side, which the user can control to show green or red light with applications under an Android or Linux operating system. Moreover, MRS-801-RE supports the popular Android 4.3 operating system and Linux system with Kernel 3.0 or above. Customers can contact Ibase with regard to the operating system they need.

The MRS-801-RE also uses 5-wire resistive touch screen technology which has a significant advantage over 4-wire technology. Unlike 4-wire touch screens, positional measurement accuracy of 5-wire touch screens is not affected by damage to the top sheet of the screen that can be caused by long term use or inadvertent damage. This is because the positional location of a press is taken on the bottom glass substrate, while the top layer acts only as a voltage measuring probe.

Unlike consumer ARM-based products, MRS-801-RE supports a wide-range operating temperature, from 0°C to 50°C and can be stored under -20°C to 60°C. As for the power input, not only does it support 12VDC, it also has a PoE+ (power on Ethernet) feature.

Standard to the MRS-801 is a 4-wire RS-232 and RS-485 interface at the edge I/O. And it is quite simple to adjust to RS-232 or RS-485 mode via an external DIP switch. A USB 2.0, Gigabit Ethernet and an OTG USB port are available.

With the above-mentioned features, MRS-801-RE can be easily applied to manufacturing control, building automation, door-sign and other applications.

Features:

- 8” 800x480 industrial-grade LCD panel with programmable LED light bar

- IP65-rated front bezel

- Cortex A9 Freescale i.MX6 solo 1GHz processor

- 1GB DDR3 memory

- Onboard 8GB eMMC

- SD slot as second storage, supports up to 32GB

- 12V DC power input, PoE+ support

- Android 4.3 and Linux 3.0 support
