The embedded controller comes with four 10/100/1000 Ethernet ports, Jumbo Frame (9.5K), PXE Remote Boot, Teaming, and wake-on-LAN (WOL) function to highly enhance its network connection speed. Additionally, the eBOX670-883-FL supports up to three independent hi-resolution displays or a 4K display. Undoubtedly, this rugged fanless embedded computer is the best solution for any industrial field, including host computers, cloud computing servers, multimedia applications, and automation systems.

To fulfill different application needs and expansion demands, the eBOX670-883-FL supports maximum up to 16GB of DDR3-1333/1600 system memory and provides two internal PCI Express Mini Card slots, one SIM card slot for 3G/ Wi-Fi/ GSM/ LTE connections. To massive storage capability, it adds two 2.5” SATA HDD, one easy-access CFast, and one mSATA interface.

“With high computing performance, low power consumption, full feature I/Os, we have no doubt that the eBOX670-883-FL has become our king system model. Furthermore, built-in Watchdog Timer, wide range temperature -40°C to +55°C and wide range 9-36VDC design highly enhances the dependability and stability of our King system,“ said Vincent Ji, product manager of Product & Marketing Division at Axiomtek.

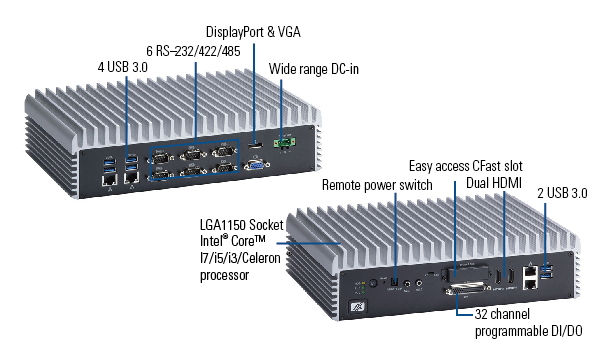

The Intel Haswell-based eBOX670-883-FL is equipped with full feature I/O, including six jumper-less RS-232/422/485, two HDMI, one DisplayPort, one VGA, six USB 3.0, 32 channel programmable digital I/O, four GbE LAN ports, one ATX power switch with status indicator and three SMA type connector opening for antenna, which enable eBOX670 to install 3G/ Wi-Fi/GSM/LTE interface for building up applications.

Remote Power Switch and AT/ATX switch allow users to set remote power or auto power on demands. The eBOX670-883-FL supports Windows 7, Windows 7 Embedded, Windows 8, Windows 8 Embedded or Linux. Additionally, the rugged embedded system is able to be wall-mounted; the optional kit is available under request. The eBOX670-883-FL is aimed to provide perfect-performance, perfect-efficiency service.

Features:

－ LGA1150 socket for 4th generation Intel Core i7/i5/i3 and Celeron

－ processors (Haswell) with Intel Q87 Express chipset

－ Fanless operation design with full feature I/O

－ 204-pin DDR3-1333/1600 SO-DIMM max. up to 16 GB

－ Two 2.5” SATA drive bay, 1 CFast slot and 1 mSATA interface

－ 2 internal PCI Express Mini Card slots, 1 SIM slot

－ Supports 2 HDMI, VGA and DisplayPort for triple independent display

－ Supports Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming

－ Supports wide range 9-36VDC power input

－ Supports wide operating temperature ranging from -40°C to +55°C
