As 16:9 widescreen LCD monitor moves to the mainstream, there are an increasing number of associated applications being modified to comply with the trend. Therefore, the presentation of ASLAN series is in accordance with ARBOR’s insight and dedication as well as the market trend.

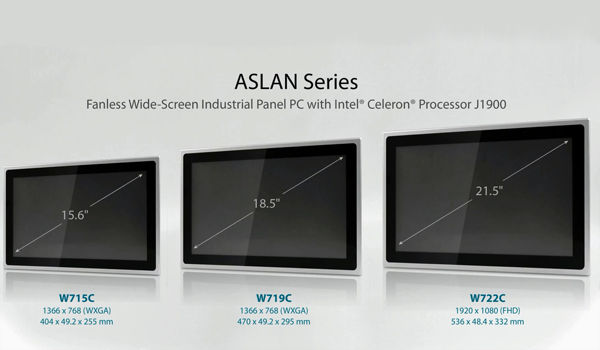

Thanks to its 16:9 widescreen, the new industrial panels PC is capable to display more information at a time and further improving the efficiency of usage of users. ASLAN series now offers three models with 15.6”, 18.5” and 21.5” to satisfy different purpose for different fields.

The ASLAN series adopts Intel Celeron Processor J1900 Quad-Core CPU which provides higher operating frequency, lower power consumption and better data processing. With a wide array of vertical I/O connectors on the rear side, allowing the fanless panel PC to be compatible of expanding connection, yet still shows the stylish appearance.

The ASLAN series comes with 1 x DVI-I video output, 2 x 1.5W speakers, 3 x Giga LANs, 4 x USBs (1 x USB 3.0, 3 x USB 2.0) and 4 COM, and is IP65 compliant on front panel with the capability of withstanding potential hazards such as dust and liquid splash, thereby providing complete peace of mind when panel mount is adopted.

In addition, The ASLAN series is featured with two service windows for changing HDD/SDD or CFast, and barcode scanner or camera can be attached to the product with VESA mount to extend its capability.

Features:

－ 1366 x 768 WXGA (15.6" & 18.5”) / 1920 x 1080 FHD (21.5”) LCD Display w/ LED Backlight

－ Flat panel with projected capacitive touchscreen

－ Front panel compliant with IP65

－ Anti-scratch surface: 7H hardness

－ Vertical I/O Design

－ Easy Maintenance Design for Cfast/HDD/SSD

－ Serial Ports (RS-232/485), RS-485 w/ Auto-flow Control

－ Mini PCIe expansion slot support

－ 2 x SMA Antenna Holes for Optional WiFi Function

－ 9~36V Wide-Range DC Input
