Avalue Introduces EBM-BDW, 5.25-inch SBC Based on 5th Generation Intel CPU
Published: Jan 06,201537 Read
Avalue Technology is introducing the 5.25-inch SBC EBM-BDW based on 5th generation Intel Core processors. The newest Intel Core processors, are based on Intel’s 14nm process technology, which is designed to prove excellent graphics and performance in a smaller thermal envelope, supporting the next generation of Internet of Things solutions, while maintaining ready compatibility with previous generations.
Avalue Is Bringing the New Embedded Single Board Computers
TAIPEI, TAIWAN–Avalue Technology is bringing the new embedded single board computers, ECM-EHL, with Intel® Pentium®/...
Avalue Brings AIoT to Taipei City with Innodisk Partnership
TAIPEI, Taiwan – Avalue Technology Inc. announced today a new partnership with Innodisk, with the goal of bringing AIoT to Taipei City streets...

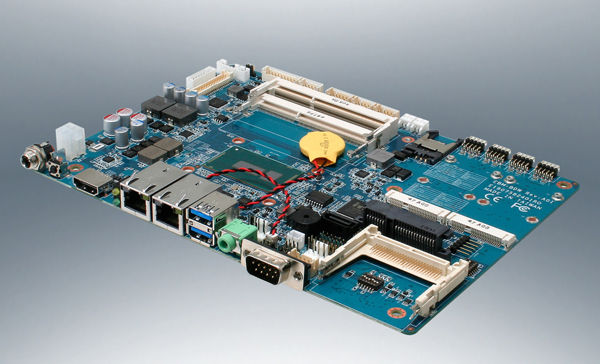

The 5.25-inch embedded board, EBM-BDW, supports two 204-pin DDR3L SODIMM system memory with up to 8GB capacity per SODIMM. EBM-BDW supports dual display configurations: HDMI+LVDS.
The I/O deployment includes two mPCIe ports (one supports mSATA and one supports PCIe & USB with SIM card slot), one HDMI, one CF, one lockable DC jack, two USB 3.0ports, four USB 2.0 ports, one COM port and 16-bit GPIO, makes various requirements of embedded applications possible. One audio jack supports Realtek ALC892, 5.1-CH audio. Two LAN ports support Intel I210AT and Intel I218LM.
“Intel’s 5th generation Intel Core processors bring excellent performance for embedded edge devices in Internet of Things applications. With this new technology, Avalue will be able to provide their customers with important advancements in speed and performance required for Internet of Things solutions.” said Samuel Cravatta, IOTG Product Line Director, Intel.
The EBM-BDW’s combined features make it the an excellent choice for applications requiring an ultra low-power, high performance and high graphics performance applications, including gaming industrial, Retail, digital signage, Medical, ATM machine and SMB storage & surveillance.
Features:
－ Onboard 5th Generation Intel Core processors with Intel HD graphics 5500
－ 2 x 204-pin DDR3L SODIMM Up to 8GB Per DIMM
－ Dual Display (LVDS & HDMI)
－ 2 mPCIe Ports, One Supports mSATA and USB w/SIM Card Slot
－ 2 x USB 3.0 compatible with USB 2.0, 4 x USB 2.0 (2 x 10-pin box wafer)
－ Build in Touch Controller
－ +12 ~ 26V Wide Power Range
