In addition, the integrated Intel HD Graphics engine also significantly advances the graphics performance. The versatile and rugged embedded system comes with one DDR3L SO-DIMM system memory maximum up to 8 GB, and one full-size internal PCI Express Mini Card slot and two SMA type of antenna openings to connect wireless through 3G or LTE.

Depending on its system scalability and advanced technologies, the fanless and noiseless eBOX638-840-FL realizes the potential of the Internet of Things (IoT) and is well suited for applications such as passenger information system, in-vehicle PCs, entry-level gaming, video surveillance, and other automation applications.

“The brand-new intelligent eBOX638-840-FL can dynamically increase the processor's frequency to accommodate a burst of speed when users need it, and increased energy efficiency when users don’t. With IP30-rated rugged aluminum steel enclosure and unique thermal solution, the superior eBOX638-840-FL can operate in temperature ranging from -10°C to +55°C and wide voltage from 16VDC to 28VDC. The Axiomtek’s eBOX638-840-FL provides a cost effective yet reliable option for plant automation management in any harsh environment,” said Vincent Ji, product manager of Product Marketing Division at Axiomtek.

“Furthermore, two PCI interfaces enable users to insert PCI expansion cards according to their mission-critical application requirements.”

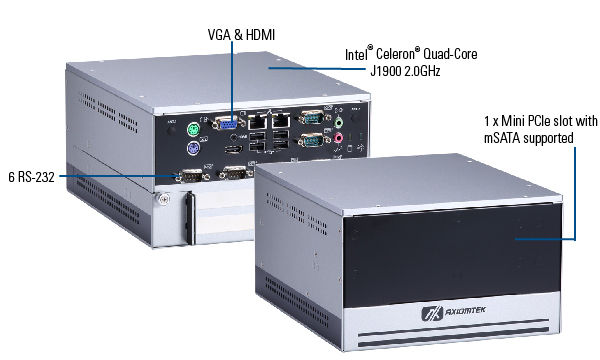

With ample I/O interfaces for communication and control purpose, the eBOX638-840-FL supports six RS-232 ports, dual Gigabit Ethernet ports, four USB 2.0 ports, one internal USB 3.0, VGA, HDMI, and audio (mic-in/line-out). One 2.5" SATA HDD drive bay and mSATA slot are embedded in eBOX638-840-FL to maintain sufficient storage. Embedded OS support is fully deployed under WES7, WE8S, and Linux.

Features:

－ Intel Celeron J1900 2.0 GHz quad core onboard (Bay Trail)

－ Fanless operation design with full featured I/O

－ Dual independent display from HDMI and VGA interfaces

－ Supports 6 COM (RS-232) ports, 2 GbE LAN ports and 1 Mini PCIe slot

－ Supports dual 32 bit/33 MHz PCI expansion slots

－ ATX 72W 16-28VDC wide range power input
