The compact GOT3187W-834-PCT adopts 18.5-inch WXGA TFT LCD and supports the low power consumption four cores Intel Celeron processor J1900 with a temperature range of -10°C to +50°C (14°F to 122°F) for mission critical environments. Multiple built-in high-speed LAN ports and USB ports enable fast and efficient data acquisition and communication. Additionally, the widescreen touch panel PC has passed heavy industrial CE standard testing and is designed to operate in trains, heavy-vehicles, heavy industries, and oil pipe monitoring systems.

The superior 18.5” touch panel system supports one 204-pin DDR3L SO-DIMM with system memory up to 8 GB, and has integrated Intel GFX onboard graphics which offers an advanced computing experience and better graphics performance. Its panel glass has a hardness of 7 in the Mohs scale to ensure high durability.

Furthermore, with 2-point multi-touch capabilities, the rugged panel pc provides extensive control for viewing displayed information. With an IP65-rated front bezel and wide temperature operating range, the Axiomtek GOT3187W-834-PCT ensures reliable operation under inclement weather conditions such as intense heat or rainfall, dusty or wet spaces in food factories, marine salt environments and other hazardous environments.

To address demand for multiple types of network and wireless connections (Wi-Fi or 3G/GPRS), the heavy-duty human machine interface (HMI) provides two PCI Express Mini card slots and an optional WLAN/3G antennas for network connections. By simply plugging in the WLAN/3G mini card, customers can use the unit in a wireless environment and even back up their files onto the cloud.

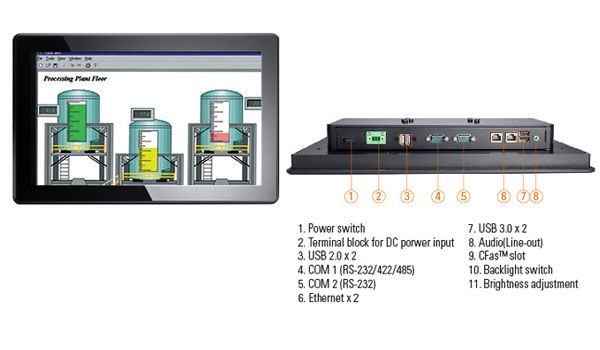

To meet different application needs, the outstanding GOT3187W-834-PCT is equipped with multiple I/O ports including two USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet LANs and two RS-232/422/485 ports for convenient connections to digital devices. Other features include one CFast slot and one 2.5” SATA HDD increased storage capacity and an optional suspension/VESA ARM kit for flexible installation.

This high performance industrial grade touch panel computer is ideal for automation control systems, including HMI and monitoring systems. To combat unstable power supply problems, sometimes found in CNC factories, the IP65-rating GOT3187W-834-PCT is equipped with a wide-range 9V-36V DC power input to prevent unpredictable voltage changes and ensure system reliability.

Features:

－ 18.5-inch WXGA TFT fanless multi-touch panel computer with quad-core Intel Bay Trail-D Celeron processor J1900 at 2.0 GHz

－ IP65-rating (NEMA 4) aluminum front bezel water/dust-proof design

－ WLAN and 3G antennas supported (optional)

－ Supports two PCI Express Mini Card

－ Supports one 2.5" SATA HDD, 1 x CFast card or mSATA

－ Supports two USB 3.0 ports, two USB 2.0 ports and two RS232/422/485 COM ports

－ Adjust RS232/422/485 settings via BIOS

－ Multi mounting: panel mount, VESA mount, optional desktop stand and wall mount kit
