The eBOX530-840-FL is built of heavy-duty aluminum extrusion with IP40 anti-dust ingress protection giving to it a high degree of structural strength. Its fanless design and excellent thermal solution allows it to operate noiseless and properly at temperature ranging from -20°C to +60°C in extremely critical environments. The rugged embedded box computer is an ideal fit to various embedded applications such as transportation, POS, kiosk, industrial control automation and medical equipment.

“The ultra-small eBOX530-840-FL is designed for running in space-critical and low power consumption environments. It is made to withstand harsh industrial environment with IP40 steel housing, shock and vibration endurance, wide operating temperature and many more features. The innovative front-access AT/ ATX DIP switch puts aside of time consuming adjustments and is able to accommodate both automatic and manual operation with a single click,” said Vincent Ji, product manager of Product Marketing Division at Axiomtek. “Moreover, customer can choose standalone, din-rail, VESA mounted and wall-mounted for any installation need.”

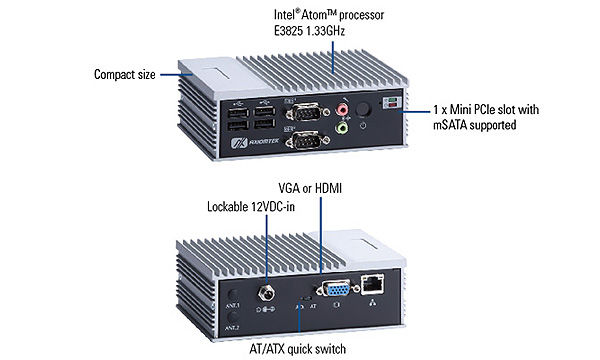

To address demand for various system integration, the eBOX530-840-FL comes with two RS-232/422/485 serial ports, one Gigabit Ethernet port, four USB 2.0 ports, one audio port (MIC in/ Line out), one VDC 12V power input connector, one AT/ATX switch, two SMA type connector openings for antenna and multiple display connectors VGA or HDMI is available upon request. The power efficient system also supports Jumbo Frame (9K), PXE Remote Boot, Teaming, and wake-on-LAN (WOL) function to provide faster network connection. Last, but not least, this new robust embedded system is fully compatible with the Windows Embedded Standard 7, Windows Embedded Standard 8, and Linux.

Features:

－ Intel Atom Bay Trail-I E3825 1.33GHz dual core

－ Compact design, fanless operation with full-featured I/O

－ High performance 204-pin DDR3L-1333/1600 SO-DIMM max. up to 8 GB

－ Supports 2 multi-COM ports, 1 GbE LAN and 1 Mini PCIe slot

－ Supports one AT/ATX mode quick switch

－ Supports Jumbo Frame (9k), WoL, PXE Remote Boot
