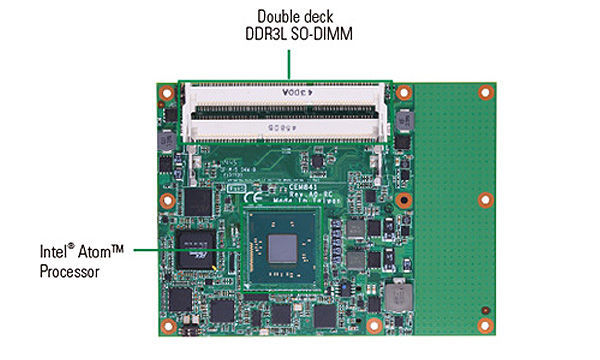

The CEM841 is equipped with double deck DDR3L SO-DIMM sockets supporting system memory maximum up to 8 GB. Coming with 8 PCI Express lanes, the power efficient system module is designed with all necessary components and offers the most updated bus interfaces targeting at POS and kiosk systems, gaming, medical PCs and HMI and industrial automation controllers.

“With rich I/O capabilities, the COM Express Type 2 module satisfies a wide range of vertical embedded applications and reduces the time and cost to develop a product . Integrated with the baseboard CEB94000, the CEM841 has the capability of eight USB 2.0, one Gigabit LAN, one LPC and one IDE,” said Yifei Wang, Product Manager of Product Marketing Division at Axiomtek. “The outstanding 7th generation Intel HD graphics engine promotes the single-chip module to deliver full HD image and faster conversion of video for portable media players and online sharing.”

Users will definitely benefit from its significantly improved performance, high quality, and the long-term availability. The energy-saving COM Express modules is designed for serial signaling protocols, including one LPC, one IDE, four PCIe x1, one PCIe x4, one SATA-300, one Gigabit Ethernet supporting Wake-on-LAN, eight USB 2.0, HD audio, SMBus and 4-in /out Digital I/O. To ensure reliability and stability, hardware monitoring and Watchdog Timer are supported as well.

Features:

－ Intel Quad/ Dual Core Celeron® processor (Bay Trail)

－ 2 SO-DIMM DDR3L-1066/1333 max up to 8 GB

－ Max. up to 8 lanes of PCI Express

－ 1 SATA-300 and 1 IDE interfaces

－ 8 USB 2.0 ports
