ARM Cortex-M0 Based MCUwith USB Controller
Published: Sep 28,20152376 Read

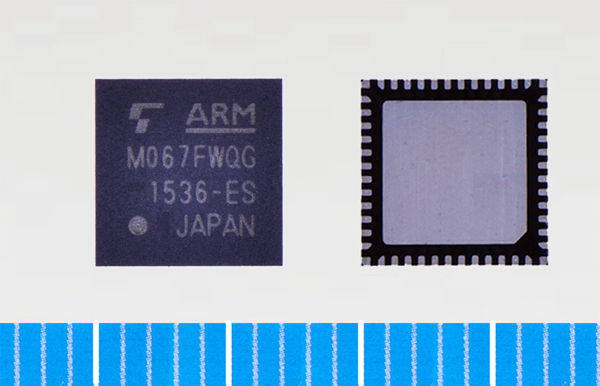

ARM Cortex-M0 core based microcontroller "TMPM067FWQG" with built-in USB device controller (Photo: Business Wire)
Toshiba Corporation announced the launch of three new microcontrollers “TMPM066FWUG”, “TMPM067FWQG”, and “TMPM068FWXBG” as the latest additions to its ARM Cortex-M0 core based “TX00 series”. The new ICs are optimized for use in USB devices. Sample shipments will start in the middle of October this year.
Toshiba Releases 650V Super Junction Power MOSFETs in TOLL Package
Toshiba has launched 650V super junction power MOSFETs, TK065U65Z, TK090U65Z, TK110U65Z, TK155U65Z and TK190U65Z, in its...
Toshiba Launches 100V High-Current Photorelay for Industrial Equipment
Toshiba has launched "TLP241B," a high-current photorelay in a DIP4 package for industrial equipment such as programmable logic controllers and I/O interfaces...
The new devices support various serial interface functions, including USB, SPI and I2C (Fast Mode Plus ), and can function as a sensor hub transferring multiple sensor information to a main controller device or PC.
In order to meet market demand for smaller systems, all three devices are housed in small packages: BGA package 5 mm×5 mm with 57-pin external connection pins; QFN package 7 mm×7 mm with 48-pin external connection pins; and QFP package 10 mm×10 mm with 64-pin external connection pins. With the built-in USB device controller, incorporating the ICs as sub-microcontrollers to non-USB devices allows implementation of new USB applications.
Features:
- ARM Cortex-M0 core. Maximum frequency: 24MHz
- Built-in USB device controller
- Small-pin packages: QFN48-pin (7 mm×7 mm, 0.5 mm pitch);VFBGA57-pin (5 mm×5 mm, 0.5 mm pitch);LQFP64-pin (10 mm×10 mm, 0.5 mm pitch)
- Multiple serial interface function: SPI, I2C (Fast-mode Plus), etc.
- Bit-banding
