New Low-power TV Transmitter Saves Cost with the Highest Quality in the Smallest Space

Published: Mar 03,2016

574 Read

Rohde & Schwarz extends its energy-efficient R&S Tx9 transmitter generation with low-power UHF transmitters that support the DVB-T, DVB-T2 and ISDB-TB digital standards.

More on This

R&S TS7124 RF Shielded Box and R&S CMW100 Test Set

A compact, flexible turnkey solution consisting of the R&S CMW100 communications manufacturing test set and the R&S TS71...

R&S CMW290 Functional Tester Supports IoT Integration

Wireless technologies such as LTE, Bluetooth and WLAN make it possible to connect devices with the Internet or with each other anywhere and everywhere...

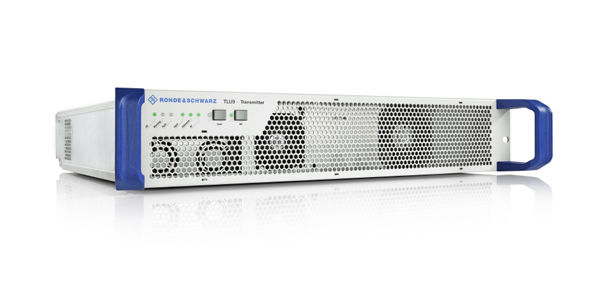

The new R&S TLU9 family considerably reduces operating expense, while delivering the highest availability and signal quality. The service concept perfectly addresses customer requirements, an advantage crucial to smooth operation.

The air-cooled R&S TLU9 with output powers from 1 W to 200 W offers the best quality in its power class. Premium components and architecture that clearly improves signal quality and stability ensure unrivaled availability and long service intervals.

The transmitter is equipped with an integrated exciter backup battery, a feature that is unique in this class. With the battery, mains voltage interruptions of up to 10 seconds do not result in a reboot of the transmitter, keeping off-the-air time to a minimum. The R&S TLU9 offers unparalleled availability and smooth operation.

Most components can be easily replaced by the customer. Service personnel can perform troubleshooting on site quickly and easily without requiring the transmitter to be returned to the manufacturer. This is possible because defective components can be replaced with minimum calibration and test effort. The R&S TLU9 thus substantially reduces costs. In addition, the R&S TLU9 shares components with other transmitters of the R&S Tx9 generation, simplifying spare parts handling if transmitters from multiple R&S Tx9 families are used.

The ultra-compact low-power transmitter comes with numerous features, including TSoIP functionality (transport stream over IP), adaptive digital predistortion and DVB-T to DVB-T2 switchover at the press of a button. Another highlight is the unique R&S TLU9 optioning system, which makes it possible to integrate multiple optional hardware components such as a satellite receiver, DVB-T or DVB-T2 receiver or components for redundancy configurations within the transmitter housing. This eliminates the need for additional equipment, saving space and cost and simplifying operation.

With its high efficiency and low heat generation, the R&S TLU9 delivers the highest energy cost savings in its class. It cuts energy expense by up to 25 percent – a major advantage since broadcast networks often comprise a large number of low-power transmitters. This reduces total cost of ownership during a system's lifetime. Network operators also benefit from simple installation through adaptive digital predistortion and an intuitive graphical user interface.

The new R&S TLU9 low-power UHF transmitters with output powers from 1 W to 200 W are available now from Rohde & Schwarz. They enhance the R&S Tx9 transmitter family that is already available in all power classes. Same as the other members of this family, the R&S TLU9 can be delivered on short notice, even if ordered in large quantities.
