Axiomtek's High-performance Fanless Embedded System with Flexible Expansion

Published: Oct 31,2016

298 Read

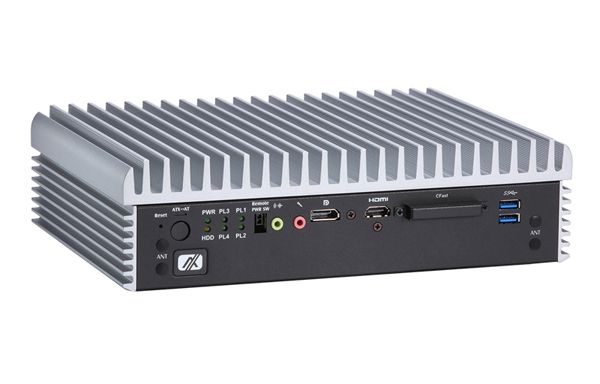

Axiomtek is announcing the eBOX670-891-FL, a fanless embedded system supporting the 6th generation Intel Core i7/i5/i3 and Celeron processors (formally codename: Skylake) with flexible I/O configurations.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

This embedded box PC is equipped with dual DDR4-2133 SO-DIMM slots with system memory up to 32 GB. The eBOX670-891-FL provides high flexibility with reserved I/O module space on the rear side. The embedded system integrator can expand the system quickly and easily by installing suitable I/O modules. The eBOX670-891-FL is for host computers, cloud computing servers, multimedia applications, security surveillance and smart factory automation.

The Intel Skylake-based fanless embedded box computer features wireless communication capabilities with two internal PCI Express Mini Card slots and one SIM card slot. Four Gigabit Ethernet ports are for customers who need mass data transmission or LAN port teaming functions for each virtual machine. For storage needs, it is equipped with one easy-access CFast socket, one mSATA interface, and dual 2.5” SATA hard drive bays with RAID 0&1 support.

The high-performance eBOX670-891-FL supports triple-view with Ultra High Definition (UHD) resolution via DisplayPort, HDMI 1.4a and HDMI 2.0. It comes with rich I/O interfaces including four RS-232/422/485 ports, six USB 3.0 and two USB 2.0 ports, 32-channel digital I/O, four GbE LAN ports, one audio, and one ATX power switch with status indicator. To fulfill different application needs, the Intel Core-based embedded system supports WE8S, WES7, Windows 10 IoT and Linux. Optionally, it can be wall-mounted or DIN-rail mounted upon request.
