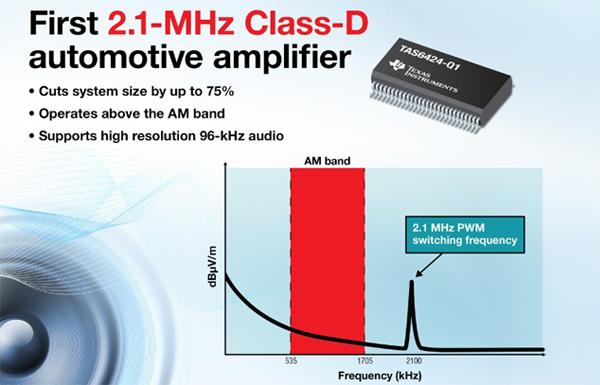

The TAS6424-Q1 enables the use of smaller external filters and eliminates up to 18 external components to reduce system size and cost compared to existing Class-D solutions. With maximum output power of 75 W per channel, the device features the industry's highest switching rate and is the only audio amplifier that switches above the AM band.

Reduces electromagnetic interference (EMI): Switching above the AM band eliminates the need for complex avoidance schemes and eases electromagnetic compatibility (EMC) designs while enabling the system to meet Comité International Spécial des Perturbations Radioélectriques (CISPR) 25 Class 5 EMC requirements.

Supports low impedance: Maintains stable audio playback while driving low impedance loads of 2 ohms.

Advanced AC load diagnostics and line driver mode: The TAS6424-Q1 provides detailed on-chip phase and impedance measurements that designers can use to configure the device with various outputs, such as woofer, tweeter and line-level connections.

Enhanced audio quality: Improves distortion, power-supply rejection and dynamic response with high-frequency switching.

Lower noise: An integrated digital-to-analog converter helps deliver a low system output noise of 42 uVrms for automotive designs like external amplifiers and head units.

Better thermal performance: Reduces power dissipation by as much as 60 percent compared to Class-AB amplifiers, greatly reducing the need for fans or large heat sinks.
