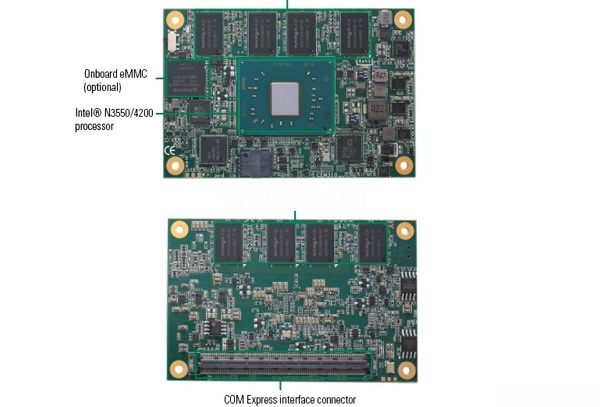

The new CEM311 is designed to support the Intel Pentium N4200 quad-core and Celeron N3350 dual-core processors (codename: Apollo Lake). Integrated with Intel Gen 9 graphics, the CEM311 with the support of DX12.0, OCL 2.0, OGL 4.3 delivers outstanding graphics computing, 4K resolutions and media performance.

The rugged system on module supports a wide operating temperature range from -20°C to +70°C to ensure stable operation in harsh environments. The embedded platform offers onboard 4GB or 8GB of DDR3L memory and an optional eMMC flash up to 64GB.

Overall, the CEM311 can be served solution for graphics-intensive applications over the Industrial IoT, including industrial control, medical imaging, digital signage, gaming machines, military, and networking.

“The CEM311 provides a balanced overall performance for the applications which need low power consumption, high performance, and rich graphics. The tiny system-on-module is suitable for handheld, portable or mini devices.” said Seamus Su, a product manager of EPDE PM Division at Axiomtek.

In addition, the CEM311 comes with I/O options including four PCI Express lanes, two SATA-600, one Gigabit LAN with Intel i211AT Ethernet controller, two USB 3.0, eight USB 2.0, one LVDS, one DDI, and four digital I/O channels.

Also, one LPC bus is available for easy connection of legacy I/O interfaces. With a wide voltage range of 4.75V - 20V DC-in power input, the module is designed to satisfy a wide range of vertical embedded applications.
