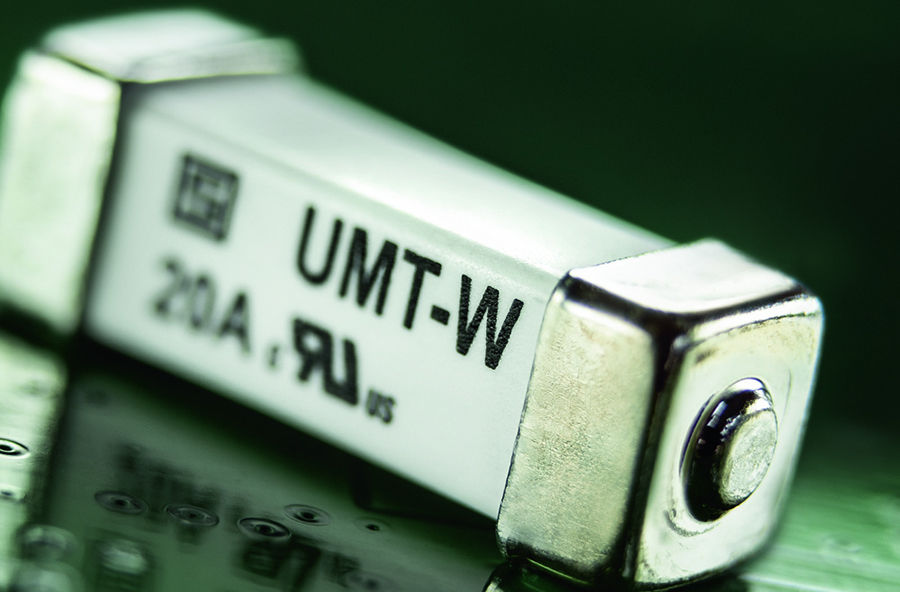

The cuboid shaped (5.3 x 16 mm), extremely compact SMD fuse is available in five rated currents from 5 A to 20 A and reaches rated voltages of up to 125 V AC&DC with a breaking capacity of up to 1000 A. All these you get with a super slow and precisely defined melting characteristic unique for SMD fuses.

The SCHURTER UMT-W is recommended wherever high inrush currents flow (e.g. motor control systems). The UMT-W is particularly suitable for applications with long cables (e.g. avionics), which are often primarily protected by an electronic fuse. If this monitoring fails, or does not perform its task correctly, the UMT-W takes over as a fail-safe device and transfers the system to a safe, current-less state. Due to the melting times with precise min/max corridor at 4xIn, robust and selective safety concepts can be implemented on top of the electronic fuse.

The UMT-W fuse is a "COTS+" product. The "+" comes from extended fuse qualification tests (e.g. AEC-Q200) and highly controlled manufacturing processes, which are available to all SCHURTER customers. For higher reliability requirements, we also offer visual inspection according to MIL-PRF 55342, different types of up-screenings (burn-in) and detailed test reports on request.
