Latest 3.5 " Single Board Computer for Embedded Applications

Published: Mar 20,2014

33 Read

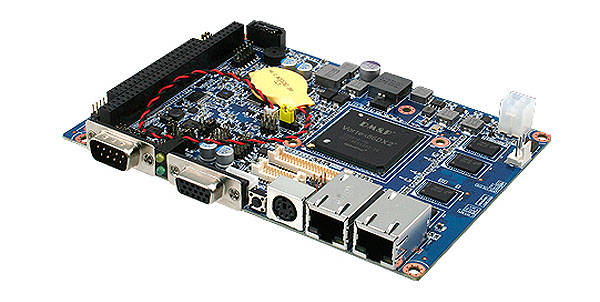

Avalue Technology, an industrial computer experts, launched the latest 3.5 " Single Board computer(SBC) - ECM-DX2, developed by DMP’s Vortex86DX2 SoC processor , a highly integrated , low-power and wide temperature features.

More on This

Avalue Is Bringing the New Embedded Single Board Computers

TAIPEI, TAIWAN–Avalue Technology is bringing the new embedded single board computers, ECM-EHL, with Intel® Pentium®/...

Avalue Brings AIoT to Taipei City with Innodisk Partnership

TAIPEI, Taiwan – Avalue Technology Inc. announced today a new partnership with Innodisk, with the goal of bringing AIoT to Taipei City streets...

Vortex86DX2 SoC processor integrated a variety of I/O ports , longer product life cycles , improve product tolerance and system performance , and integrated many standalone IC, such as CPU, Southbridge , Northbridge , GPU, HD Audio and BIOS, significantly reduced the size of the device for industrial and embedded applications.

ECM-DX2 uses DMP Vortex86DX2 4.5W @ 800MHz SoC solutions, is third-generation product of Vortex86 family. ECM-DX2 supports one on-board set of DDR2 memory, up to 1GB, and supports single-channel 24-bit LVDS ( optional 18-bit) with dual display VGA + LVDS or VGA + TTL output.

Expansion I/O contains 1 SATA II, 4 COM, 2 USB 2.0,8-bit GPIOs, 2 Ethernet ports and 1 PS / 2 mouse and keyboard ports. ECM-DX2 also providing PC/104 (8/16-Bit ISA) expansion slot and one Mini-PCIe card slot , providing users with more flexibility to adapt to more diverse applications.

ECM-DX2 supports industrial-class 12 ~ 26V voltage input , and -40 ~ 75 ° C degrees wide- pressure environment , suitable for use under harsh environment . As for operating systems, it support Windows 2000, Windows XP and Linux for a variety of embedded designs.

ECM-DX2 target market is diverse embedded application markets , including industrial automation, railway industry , clean technology , transportation / vehicle construction and aviation applications.

Features:

• DM&P Vortex86DX2 SoC, Low Power Consumption,4.5W @ 800MHz

• Onboard DDR2 Memory Up to 1GB (32bit)

• Dual view : VGA + LVDS, VGA + TTL

• Single-channel 24-bit LVDS (Optional 18-bit)

• 1 SATA II, 4 COM, 2 USB 2.0, 8-bit GPIO, Dual LAN

• PC/104 Expansion (8/16-Bit ISA)

• Supports Extended Temperature to -40 ~ 75°C

• HD Audio

• Fanless Operation
