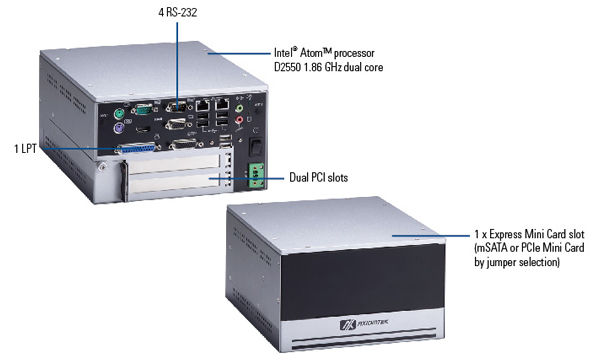

The eBOX639-830-FL is especially designed to offer great expandability with two PCI slots that can support a variety of applications including motion and vision control, and one internal PCI Express Mini Card slot for WiFi or 3G/4G connectivity. The rugged embedded computer is designed with an IP30-rated rugged aluminum steel enclosure for best system protection.

To withstand extreme working temperatures and harsh environment, the system offers unique thermal solution that allows for wide operating temperature range of -10°C to +50°C (14⁰F to +122⁰F). The eBOX639-830-FL is ideally suited for passenger information system, in-vehicle PCs, entry-level gaming, video surveillance, and other automation and embedded applications.

The powerful eBOX639-830-FL has one 204-pin DDR3 1066 SO-DIMM system memory supporting up to 4 GB. This feature-rich embedded computing box is also equipped with two display interfaces: VGA and HDMI.

“The eBOX639-830-FL is a versatile solution with great expansion capability. Systems integrators can easily customize and deploy their applications, hence, shorten the time to market. In addition, this high performance embedded system is especially designed with Intel® Network Interface Card (NIC), which supports jumbo frame for faster Ethernet data transfer,” said Vincent Ji, product manager of Product & Marketing Division at Axiomtek.

To provide flexibility for various application needs, the eBOX639-830-FL offer rich I/O alternatives, including four COM ports (RS-232), six USB 2.0 ports, dual Gigabit Ethernet ports with jumbo frame support, one full size PCI Express Mini Card with mSATA support, one LPT port, two PCI expansion interfaces.

This CE (Class A) and EN 60950 certified embedded system provides the options of terminal block type (DC) or 4-pin DIN type (AC to DC) power connector, and choices of popular embedded operating systems including Windows XP Embedded (XPE), Windows Embedded Standard 7 and Linux. For ease of installation and system management, this highly customizable compact box PC can be wall-mounted and remotely controlled and managed with its built-in watchdog timer.

Features:

－ Rugged design; and, low power, fanless, noiseless operation

－ Intel Atom processor D2550 at 1.86 GHz with Intel NM10 chipset (Cedar Trail)

－ One 204-pin DDR3 1066 SO-DIMM system memory supporting up to 4 GB

－ Dual-display capabilities via VGA / HDMI

－ Six USB 2.0, four COM (RS-232), one LPT and dual Ethernet ports.

－ Two SMA antenna opening

－ One 2.5" SATA HDD

－ Two PCI slots and one internal full size PCI Express Mini Card slot

－ Support jumbo frame

－ Wide operating temperature range from -10°C to +50°C

－ IP30-rated, dust-proof construction
