Two New COM Express Type 2 Modules From ADLINK, with Latest Intel Processors

Published: Nov 21,2014

41 Read

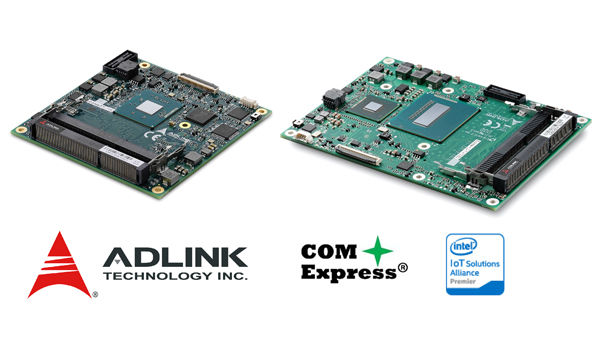

ADLINK Technology announced availability of its newest COM Express Type 2 modules. The new products come in two series, named Express-HL2 and cExpress-BT2, indicating the 4th generation Intel Core processor and latest Intel Atom system-on-chip. The range in footprint and computing power of these new modules meets the varying needs of industrial applications in a cost-efficient manner.

More on This

COM Express Module Supports PCIe Gen4 and AI Optimization

ADLINK Technology launches its next generation COM Express Type 6 module, the cExpress-TL, based on the 11th Gen Intel C...

AUO to Acquire Shares of ADLINK Through Tender Offer, Forging AIoT Strategic Partnership

HSINCHU, Taiwan – AU Optronics Corp. (AUO) announced that as part of the value transformation plan, AUO’s Board of D...

Type 2 is an earlier COM Express pin-out, and is most commonly used in areas such as industrial automation and transportation. As many older generation COM Express Type 2 modules near end-of-life status, ADLINK's Type 2 modules based on new Intel silicon will serve as a drop-in replacement to extend the service life of Type 2-based systems for another seven years—with continued technical support from both ADLINK and Intel.

"ADLINK is dedicated to exploring new form factors and technologies, but we also see the value in supporting and enhancing popular, existing form factors so that our customers and end-users can get the most out of their established installations," said Henk van Bremen, director of ADLINK's Module Computing Product Segment.

“At present, ADLINK is the only company in the market that provides Type 2 modules with both 4th generation Intel Core and the latest Intel Atom processors. ADLINK continues to support COM Express Type 2 so that our customers can upgrade their systems using existing designs without the need to redesign their carrier boards, providing them maximum benefit from their investment.”

The ADLINK Express-HL2 series is a basic size module (125 x 95mm) and is available in high performance SKUs running 4th generation Intel Core i7/i5/i3 processors with Mobile Intel QM87 Chipset and cost-effective SKUs running Intel Celeron processors with Mobile Intel HM86 Chipset. Up to 16GB dual channel DDR3L at 1600MHz is supported, and dual channel LVDS and VGA supporting two independent displays allow for development rich video applications.

The cExpress-BT2 series is a compact size module (95 x 95mm), featuring an Intel Atom processor E3800 series or Celeron processor with a power envelope below 10W, and is suitable for small-size and low power consumption applications. The module provides rich I/O including two PCIe x 1 Gen2, 32-bit PCI 2.3, one SATA 3Gb/s port, and one PATA IDE port (optional 2 SATA) to meet peripheral expansion needs.

These new Type 2 modules are reinforced by ADLINK's complete set of technical and engineering tools, including the COM Express Type 2 Starter Kit, which allows system integrators to accelerate carrier board design and software verification; a debug module for POST, BIOS and Board Management Controller; and the Smart Embedded Management Agent (SEMA), which allows users to administer remote monitoring and control tasks via user-friendly graphic interfaces and access state-of-the-art cloud services.

Versatile OS support is also provided to deliver flexibility, with standard support for Windows and Linux (32 and 64–bit) and extended support for WES 7/8, WEC 7/8 and VxWorks.
