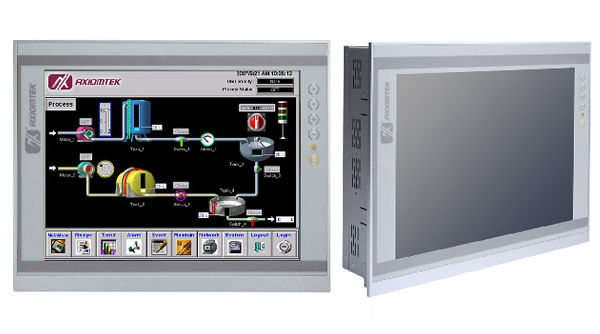

The P1157S-881 is ideally suited for automation and factory applications, including production line monitoring, quality control, intelligent automation, IoT-related and manufacturing operational control. This highly integrated panel PC is designed with ease of customization in mind and focus on reducing time-to-market for systems integrators.

The Axiomtek P1157S-881 is specifically designed to withstand continuous use in harsh climate conditions. It is equipped with an IP65/NEMA 4-rated front panel to protect the system from water spillage, dust and damages from solid foreign objects like dirt. The slim-type touch panel PC has an excellent thermal solution with the patented chassis design, which dissipates heat efficiently in order to enhance system reliability.

Additionally, the P1157S-881 is designed with ease of maintenance in mind. The user can quickly remove the system’s back cover with minimum effort. If larger viewing area is desired, an additional display can be connected via the system’s VGA or HDMI port. This expansion capability will also help enhance worker’s productivity level.

“Customers continually look for high-end and most flexible industrial panel computer in the automation market. The P1157S-881 is a feature-rich, highly customizable touch panel computer with ruggedized protection. The versatility in its design and features allows for use in a variety of industries,” said Debbie Tu, production manager for Axiomtek’s Product Marketing Division.

“To accommodate different types of settings, the panel system can be installed using a desktop stand, VESA ARM, rack or wall mounting. It also features built-in speakers for use in multimedia kiosk applications. The multi-functional touch panel system also offers an optional Wi-Fi 802.11 b/g/n module and WLAN antenna for wireless connectivity.”

Other useful additional features include dual 10/100/1000 Mbps Ethernet ports, two DDR3 SO-DIMM for up to 16GB of memory, audio (mic-in and line-out ), four COM ports (3 x RS-232/422/485, 1 x RS-232), four USB 2.0 ports and two USB 3.0 ports as well as two 2.5” or one 3.5” SATA HDD for storage capacity.

Features:

－ 15-inch XGA TFT touch panel computer with options of 4th generation Intel Core Pentium or Celeron Processors

－ Intel H81 chipset

－ IP65 (NEMA4)-rated front panel waterproof sealed design provides rugged protection

－ Dual monitor display (VGA/HDMI) and speakers

－ Optional WLAN module and antenna for wireless network connection

－ Four COM ports (three RS-232/422/485 and one RS-232)

－ Two Gigabit LAN ports, four USB 2.0 ports and two USB 3.0 ports

－ Desktop stand, VESA ARM, rack and wall mounts for flexibility in installation
