It has one 204-pin DDR3 SO-DIMM socket with maximum up to 8 GB. It offers stunning 4K Ultra High Definition (UHD) content via a HDMI port. The Intel Core-based OPS883-H is ideal for multi-display applications in airport information board, shopping mall, corporate, education, hospitality, religious organization, bank, retail store, restaurant, performing art center and many more.

“The Axiomtek OPS883-H provides superb graphics performance, 4K content playback, and dual display presentation. It measuring only 200mm wide, 30mm high, and 119mm deep is a space-saving player designed to be plugged into an OPS compliant display. Building upon the standard Open Pluggable Specification, the advanced OPS883-H pluggable signage player enables digital signage vendors to simplify the installation and maintenance without interruption. The flexible signage system also can be deployed faster at a lower costs and greatly enhance time to market and sales,” said Vincent Chi, product manager of Product & Marketing Division at Axiomtek.

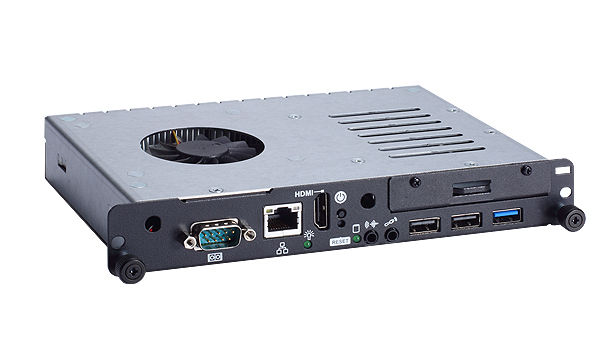

This smart pluggable signage module is connected to OPS-compliant display via a standardized JAE TX-25 plug connector, and includes DisplayPort, UART, audio, USB 3.0 and USB 2.0 signals. To fill different application needs, the signage unit reserves a wide choice of I/O ports on front panel, including one USB 3.0 ports, two USB 2.0 ports, one COM port, audio (in/out) and a Gigabit Ethernet port.

This slim-type OPS system has one internal PCI Express Mini Card slot to connect Wi-Fi or 3G/ LTE modules to satisfied users wireless needs. It features one easy-to-access 2.5” SATA HDD as storage device. Also, it supports TPM 1.2 feature which is designed to secure system. It has a built-in Watchdog Timer to reset the system after a crash or system error. This high performance Intel quad-core / dual-core OPS system is fully compatible with the Windows 7 and 8.1 operating system.

Features:

－ OPS-compliant (Open Pluggable Specification) signage player

－ 4th generation Intel Core i7/i5/i3 processor (Haswell) with Intel H81 chipset

－ One 204-pin DDR3 1600 SO-DIMM system memory supporting up to 8 GB

－ Dual display supported (HDMI supports 4K resolution)

－ One USB 3.0, two USB 2.0, one COM, and one Gigabit Ethernet

－ One 2.5" SATA HDD

－ One internal PCI Express Mini Card slot

－ Wide operating temperature range from 0°C to +45°C
