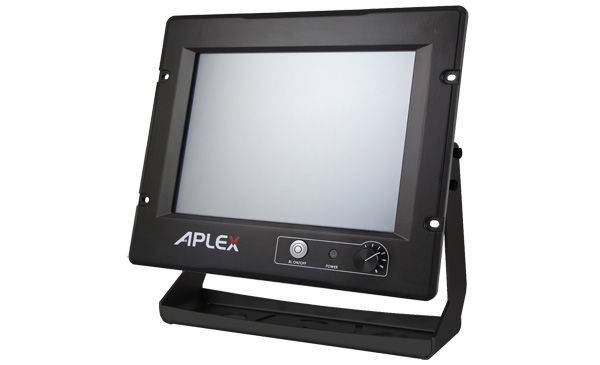

The APC-3X20 series features Intel 4th generation core i solutions with up to 4GB of system memory to deliver excellent performance for marine grade users. A journey on sea may encounter various unexpected circumstances. To cover all kind of marine applications, APC-3X20 series provides a variety of advantages. For instance, it provides the captain or master with high resolution up to 1920x1080 and sunlight/moonlight readable features to display crystal image for navigating marine map or any marine emergencies.

The dimming technology, namely brightness control, will enable 0%~ 100% adjustment via a user-friendly VR knob based on different levels of light source and AR (Anti-reflective coating) with resistive touch contributes to a more intuitive user interface. Moreover, APC-3X20 series features isolated 9~36V DC wide-range power input to protect incidental surge and burst on the sea.

APLEX APC-3X20 series is specially designed for marine applications adhere to IEC 60945 and DNV standards. From bridge, control/engine room, radar communication, to cabin or outdoor environment, APC-3X20 series is able to optimize marine-grade requirements for both military and commercial marines. In addition, with easily accessible storage design, APC-3X20 series offers 1 x 2.5” SATA HDD bay, 1 x internal SD slot and 1 x CF internal slot for option. In the front side, APC-3X20 features sufficient communication including WiFi/BT/GPS and 3G.

Features:

－ LCD Sizes at 12.1”19” and 24”

－ Aluminum (10mm) bezel and housing (with Anti-Corrosion Coating)

－ Intel Core 4th Gen i3/i5/i7 Processor

－ 4G DDR3L on board

－ 1 x 2.5”SATA HDD1 x SD slot on board and 1 x CF slot (option)

－ Brightness control from 0% to 100% by a dimming knob

－ Anti-shock and Anti-vibration design

－ 9~36V DC Power Input with isolation

－ Marine adjustable mounting kit for option

－ IEC 60945 Certificated
