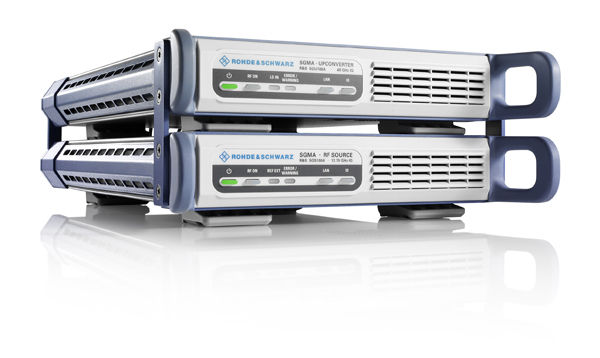

Though compact (two height units and ½ 19" rack width or one height unit and full 19" rack width ), the combination of the R&S SGS100A and the R&S SGU100A offers outstanding performance. The setup is perfectly suited for ultrawideband aerospace and defense applications, as starting from 12 GHz the R&S SGU100A can be used with a 2 GHz I/Q modulation bandwidth.

Together with the R&S SMW200A high end vector signal generator with a frequency range up to 40 GHz, a compact system with a maximum of three phase coherent outputs up to 40 GHz can be set up – ideal for testing phased array antenna systems.

The R&S SGU100A is now available from Rohde & Schwarz as a pure CW upconverter and as a version for I/Q-modulated signals.
