The ultra-slim fanless embedded computer supports system memory up to 8 GB with one DDR3L-1066/1333 SO-DIMM socket and offers HDMI and VGA display outputs, offering not only high computing capability but also excellent graphics performance. Integrated single-chip design, the brand new ruggedized embedded system is lighter and thinner compared to previous eBOX620 series. Supporting wide operating temperature between -20°C to +55°C and 10~34VDC wide DC input voltage, the fanless embedded PC is excellence for wide range of industrial applications. Its passive cooling design also offers quiet, fanless operation with low power consumption, and all at an attractive price point.

Apparently the industrial-grade computer eBOX626-842-FL is a reliable computing embedded solution to facilitate various applications in both intelligent and industrial computing solutions such as smart automation, transportation, kiosk, industrial gateway, medical equipment and other IoT&M2M applications.

“The compact-sized eBOX626-842-FL is made of rugged IP40-rated aluminum cold-rolled steel enclosure with anti-vibration up to 3Grms which can perfectly protect it from breakdown in harsh environment. To meet the WLAN & WWAN communications, this powerful embedded platform supports dual PCI Express Mini Card slots with USB and PCI Express connections and one SIM slot for high-bandwidth expansions such as GPS, GSM/GPRS, Wi-Fi, 3G/LTE, and more,” said Vincent Ji, product manager of Product & Marketing Division at Axiomtek.

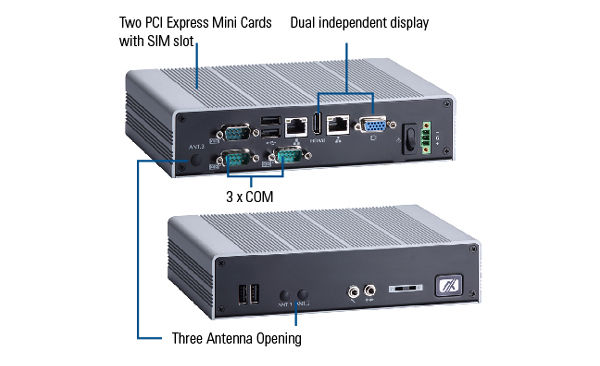

With full-featured of I/O interfaces, the Intel Celeron-based eBOX626-842-FL supports two RS-232/422/485 ports, one RS-232 port, VGA, HDMI, audio, dual Gigabit Ethernet LAN ports, four high-speed USB 2.0, three SMA type connector openings for antenna, 10~34VDC power input connector, and one ATX power switch. One 2.5" SATA HDD drive bay and mSATA are also embedded in the embedded computer to possess sufficient storage.

Axiomtek’s eBOX626-842-FL is going to be available in the middle of September, 2015. We provide a wide array of IoT & M2M industrial systems for transportation, energy-saving & utility and automation fields.

Features:

－ Fanless, IP40 rated operation design with full-featured I/O

－ Intel Celeron J1900 2.0GHz quad-core SoC onboard (Bay Trail)

－ High performance 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8 GB

－ 2 RS-232/422/485, 1 RS-232 and 4 USB ports

－ One 2.5” SATA drive bay and mSATA supported

－ 2 PCI Express Mini Card slots and 1 SIM slot

－ Supports VGA and HDMI dual display

－ Wide operating temperature -20°C - +55°C

－ Wide range DC input 10-34VDC
