The advanced embedded computer tBOX810-838-FL could meet the diverse needs of transportation industry, such as in-vehicle, rolling stock and marine market. Measuring only 164 x 108 x 44 mm and 0.77kg, the mini fanless embedded system supports a wide operating temperature ranging from -40°C to +70°C as well as 9 ~ 36V wide DC input for wide range of harsh environmental conditions. The outstanding high-quality fanless transportation computer is definitely the top choice for M2M intelligent system for railway, marine, and in-vehicle solutions.

Axiomtek leverages its global expertise to provide complete product solution for in-vehicle, railway and marine applications. We provide first-class embedded box computers that are easy to install, offer superior performance and reliability, and are rugged to thrive in harsh environments. Axiomtek tBOX810-838-FL is powered by the Intel Atom processor E3845 quad-core 1.91GHz or Intel Atom processor E3827 dual-core 1.75 GHz (codename: Bay Trail) with onboard DDR3L memory up to 4GB. Additionally, the rugged embedded computer has high integration ability with two full-size PCI Express Mini Card slots and one SIM card which makes it a multi-function professional embedded device for transportation applications.

“Axiomtek’s tBOX810-838-FL is our new all-in-one, extremely small embedded box PC targeted at in-vehicle, railway and marine fields. The solid embedded box computer can not only be compatible with Wi-Fi, 3G/4G, GPS/G-sensor module card but also provides extra storage and extend functionality for various applications. Concerning the reliability and durability, it is designed-in with intelligent power manager for vehicle battery and system protection. Through setting up ignition and ACC delay time, user can prevent losing data and running out of battery while vehicle is under on and off. The robust transportation embedded system can endure wide temperature range from -40°C to +70°C and can withstand vibration up to 3 Grms.,” said Jerry Huang, product manager of Embedded PM Division at Axiomtek.

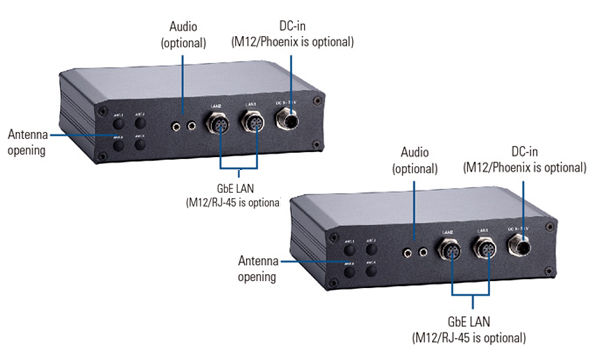

The Intel Bay Trail embedded computer supports two RS-232/422/485 ports, one 8-bit DIO, one VGA port, two USB 2.0 ports, one remote switch, one reset button, four antenna openings, and two M12-type or RJ-45 Gigabit LAN ports. One 2.5" SATA drive (9.5 mm) and one mSATA are available for system storage. System expansion is also possible via two full-size PCI Express Mini Card slots and one SIM card allowing an optional 802.11 b/g/n wireless LAN card to be installed. The certified transportation embedded controller adopts M12 A-coded DC power input or Phoenix DC power input for your selection.

Features:

－ eMark, ISO7637, EN50155, EN50121 and IEC60945 certifications

－ Designed especially for in-vehicle, railway and marine fields

－ Intel Atom E3845 4C@1.91GHz or Intel Atom E3827 2C@1.75 GHz (codename: Bay Trail)

－ DDR3 4 GB system memory onboard

－ Fanless with wide operating temperature range of -40°C ~ +70°C (EN50155 class TX)

－ Intelligent power management solution

－ Compact size with rich I/Os

－ DIN rail and wall mount supported

－ 2 full-size PCI Express Mini Card slots, 1 SIM card socket for various applications
