The compact-size embedded board CAPA843 was designed with emphasis on expandability, offering two full-size PCI Express Mini Card slots, as well as an exclusive Axiomtek ZIO connector. With excellent thermal design, the 146 x 102mm embedded SBC can handle operating temperatures from -20°C to 70°C, and runs on +10V to +24V DC input. The 3.5” fanless embedded board provides three display interfaces with dual-display operation: HDMI, LVDS and VGA. The CAPA843 is an excellent choice for applications in IoT/M2M-related, industrial control, self-serve terminal, gaming, digital signage, POS, and kiosk.

“The Axiomtek CAPA843 comes packed in a thin 3.5” form factor with wide range DC-input as well as rich I/O connectivity. It features dual Gigabit Ethernet ports, dual PCI Express Mini Card slots, and dual display capabilities, plus support for extended temperature operation. The rugged design embedded board supports fanless operation which prevents annoying dust and noise problem. The low power Intel SoC-based CAPA843 is ideal for a multitude of space-limited applications. The delivery of better graphics and imaging also makes it ideal for gaming and signage,” said Michelle Mi, product manager of Product & Marketing Division at Axiomtek.

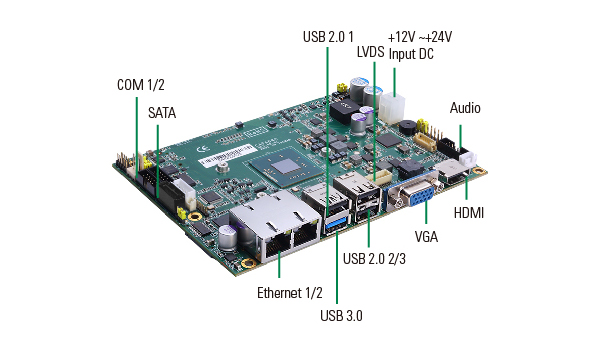

The 3.5in single board computer CAPA843 comes with advanced connectivity including two Gigabit Ethernets ports, one RS-232/422/485 port, one RS-232 port, four USB 2.0 ports, one USB 3.0 port, one SATA-300 interface, audio, 8-bit programmable DIO, and two full-size PCI Express Mini Card slots (one supporting mSATA), as well as a flexible ZIO connector on the rear-side that integrates PCIe x1, USB, LPC and SMbus expansion. The built-in Watchdog Timer keeps system running smoothly. Hence, the power-efficient industrial embedded platform runs well with Windows® 7/8 operating systems.

Features:

－ Built-in quad-core Intel Celeron processor J1900 (codename: Bay Trail)

－ 2 DDR3L SO-DIMM supports up to 8 GB memory capacity

－ 4 USB 2.0 ports, 1 USB 3.0 port, 2 COM ports

－ Dual views through multiple display outputs of HDMI, LVDS and VGA

－ Fanless operation and wide range temperature support from -20°C to 70°C

－ ZIO connector for flexible expansion

－ Wide range voltage design: +10V to +24V DC-in

－ ZIO modules: AX93262, AX93285, AX93291
