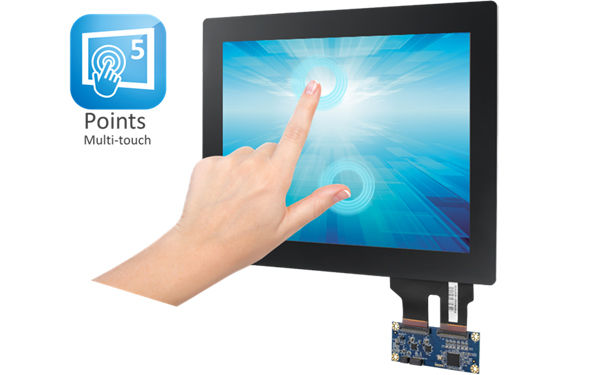

This 10.4” display kit extends the benefits of the current IDK series, providing cost-effective displaysolutions with proven compatibility with Advantech embedded boards and systems. IDK-1110P can be used for edge-to-edge applications, making it ruggedized and easy to maintain. The 10.4" 500-nit industrial grade touch display kit supports USB, I2C, and UART interface. The new series provides superior intuitive UI for end users and is perfect for multi-touch applications such as interactive kiosks, POS, HMI, and more.

Multi-touch displays are easy to use and intuitive to operate and learn. Advantech IDK-1110P series features PCT technology which allows up-to five-point simultaneous touch operation and because there is no pressure or deflection applied to the screen with cover glass protection, improves their durability and life expectancy.

Moreover, IDK-1110P is suitable for edge-to-edge applications and can be hardened to operate in harsh environments. The series also supports wide viewing angles of 88°/ 88°/ 88°/ 88° for better all-round viewing. IDK-1110P series provides an optimal user experience for the end user, whether with Windows or Android OS support, it is ideal for all kinds of industrial grade HMI, POS and KIOSK applications.

IDK-1110P implements an industrial grade LCD panel which supports a wide rangeof operating temperatures from-20~70 °C and guarantees up to 3 year longevity support. It is manufactured in Advantech’s class 10,000 clean room and integrated with an LED driver board and LVDS interface yet still keeps its compact size.

With an LVDS interface, there is no need for a converter board to connect IDK-1110P with an embedded board, saving more on integration cost and space. In addition, IDK-1110P is tested to be fully compatible with all Advantech embedded boards and systems. Contact your local sales or visit the website to find out more.

Features:

- LED Display with Project Capacitive touch Interface

- 10.4” LED display kit supporting XGA (1024 x 768) resolution.

- 500-nit brightness with LED backlight for low power consumption.

- Supports wide temperature of -20~70°C.

- Green LED backlight with prolonged 50,000 hrs lifespan.

- Wide viewing angle: 88 /88 /88 /88

- LVDS signal interface.

-Touchsupports up to 5 points.

- Proven compatibility with Advantech embedded boards and systems.

- Perfect for multiple user interface applications such as public information kiosks, POS, Kiosk and more.
