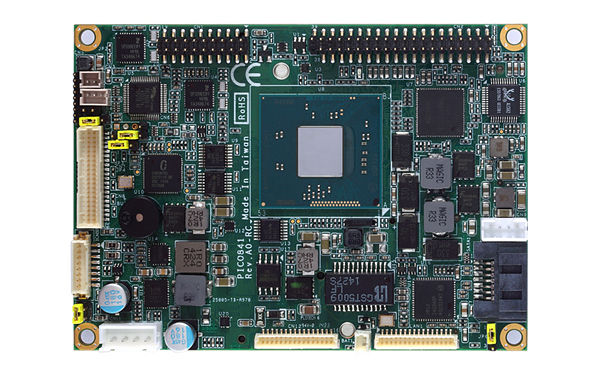

The Pico-ITX motherboard is capable of operating under wide temperatures from -20°C to +70°C. Its fanless design and low power consumption also offers better reliability and power savings. The ultra-slim size easily meets compact size requirements for space limited or harsh applications. Its I/O functions all come from internal connectors enabling super slim, flexible wiring design. The Axiomtek PICO843 is ideal for in-vehicle PCs, medical imaging, gaming, in-flight entertainment systems, industrial automation systems, and the portable devices.

Axiomtek's rugged embedded Pico-ITX motherboard, PICO843, comes with advanced connectivity including two RS-232/422/485, four USB 2.0, one Gigabit Ethernet, HD audio, VGA, 18/24-bit single channel LVDS, SATA-300, and full-size & half-size PCI Express Mini Card slots.

To ensure reliable operation, the fanless yet wide temperature embedded SBC supports watchdog timer and hardware monitoring features. The Intel Bay Trail embedded board platform runs well with Windows 7/8 operating systems. In the meanwhile, the PICO843 requests only +12V DC power input into work.

The fanless Pico-ITX motherboard PICO843 will be available around the beginning of December, 2015. Axiomtek provides a wide array of intelligent IoT & M2M solutions, network communication platform, industrial panel PCs, systems & platforms and embedded boards & modules solutions.

Features:

－ Pico-ITX form factor motherboard with fanless design

－ Intel Celeron processor J1900 quad-core (2GHz up to 2.42 GHz) or N2807 dual-core (1.58GHz up to 2.16 GHz) (codename: Bay Trail)

－ One DDR3L SO-DIMM supports up to 8GB memory capacity

－ Supports four USB 2.0 and one Gigabit LAN

－ Two COM ports (RS-232/422/485 selectable)

－ One full-size PCI Express Mini Card with mSATA support and one half-size PCI Express Mini Card

－ Supports wide operating temperature of -20°C to +70°C (-4°F to +158°F)

－ +12V DC power input
