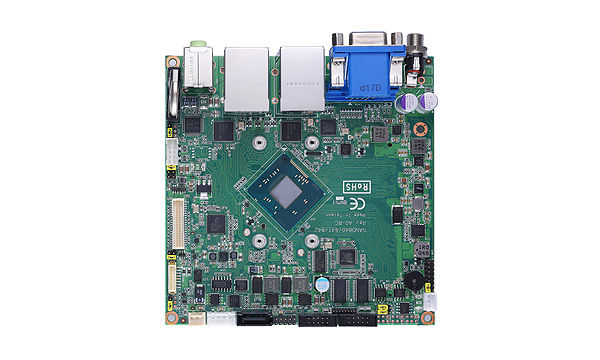

A DDR3L SO-DIMM socket located on the bottom of the board can support up to 8GB of DDR3L memory. It can handle operating temperatures from -20°C to 70°C, and runs on +12V DC input. This 120 x 120 mm industrial embedded board comes with multiple display outputs: HDMI, LVDS and VGA with visual experiences enhanced for dual-view supported. The Axiomtek NANO842 is an ideal solution aimed at embedded, industrial, and IoT applications.

Nano ITX is a small form factor computer motherboard which measures approximately 4.7 x 4.7 square inches. The super compact NANO842 has two PCI Express Mini Card slots on its bottom side: a full-sized slot and a half-sized slot. Storage interfaces include a standard SATA-300 connector on the board edge, as well as mSATA support on the full-size PCI Express Mini Card socket. Other I/O interfaces include five USB 2.0, one USB 3.0, two Gigabit LAN, one RS-232/422/485, one RS-232, audio, and 8-bit programmed Digital I/O.

The hardware monitoring and watchdog timer keeps system running smoothly. Additionally, the Intel Bay Trial SoC nano-ITX motherboard NANO842 is equipped with an Infineon TPM 1.2 security chipset to enhance user data protection. The quad-core fanles embedded platform runs well with Windows 7/8.1/10 operating systems.

Axiomtek’s new NANO842 will be available in the beginning of February, 2016. Axiomtek provides a wide array of intelligent IoT & M2M solutions, network communication platform, industrial panel PCs, systems & platforms and embedded boards & modules solutions.

Features:

－ Intel Celeron Processor J1900 (2.0 GHz) or N2807 (1.58 GHz) (Intel® Bay Trail SoC)

－ Wide range temperatures from -20°C to +70°C in fanless operation

－ One DDR3L SO-DIMM supports up to 8GB memory capacity

－ Five USB 2.0 ports and one USB 3.0 port

－ Two COM ports and two Gigabit LAN ports

－ Two PCI Express Mini Card slots

－ Multiple display outputs: HDMI, LVDS and VGA

－ +12V DC power input
