Braswell SoC Fanless Embedded System for IIoT Solutions

Published: May 18,2016

626 Read

Axiomtek has announced eBOX560-300-FL, its palm-sized fanless embedded system with low power consumption and full-featured I/O interface. The extremely compact embedded box PC is powered by the high performance Intel Pentium processor quad-core N3710 (formally codename: Braswell), featuring IP40-rated enclosure and operating temperature range of -20°C to +55°C (-4°F to +131°F).

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

The reliable eBOX560-300-FL comes with one DDR3L-1600 SO-DIMM socket with system memory up to 8 GB, and offers one PCI Express Mini Card for custom system configurations and two HDMI with 4K ultra resolution, making it ideal for Industrial Internet of Things (IIoT) solutions, digital signage, retail equipment, smart factory automation, thin clients, industrial controller systems and many more.

“The Axiomtek eBOX560-300-FL is built with a heavy-duty aluminum extrusion with IP40-rated anti-dust ingress protection. This ultra-compact Braswell SoC embedded box PC is capable of operating under wide temperatures ranging from -20°C to +55°C and supports anti-vibration up to 3G. Furthermore, its unique fanless design requires zero fan maintenance cost and offers dust-free and noiseless operation,” said Vincent Ji, product manager of Embedded PM Division at Axiomtek.

“To meet the WLAN communications, this heavy-duty box computer supports one PCI Express Mini Card slot and two SMA type connector openings for antenna. The eBOX560-300-FL is perfectly suitable for any industrial grade applications related to IoT.”

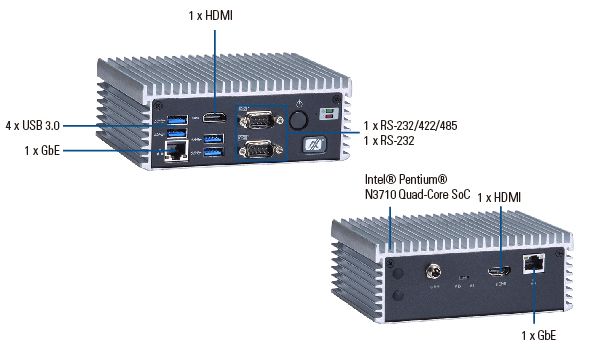

The eBOX560-300-FL is equipped with rich I/O connectivity including four USB 3.0 ports, one RS-232/422/485 port, one RS-232 port, two Gigabit Ethernet ports, one full-size PCI Express Mini Card slot, and two HDMI ports with up to 4K resolutions for dual independent display applications. Moreover, this palm-sized embedded box PC supports one user-friendly front-access AT/ATX DIP switch, allowing user to adjust with a single click.

The storage interfaces include one 2.5” SATA HDD and one mSATA shared with PCI Express Mini Card slot. The Intel Pentium-based quad-core fanless embedded platform runs well with the Windows Embedded Standard 7, Windows Embedded 8 Standard, Linux and Windows 10 IoT. To fulfill various application needs, it also supports VESA mount, wall mount and DIN-rail mount by optional requests.
