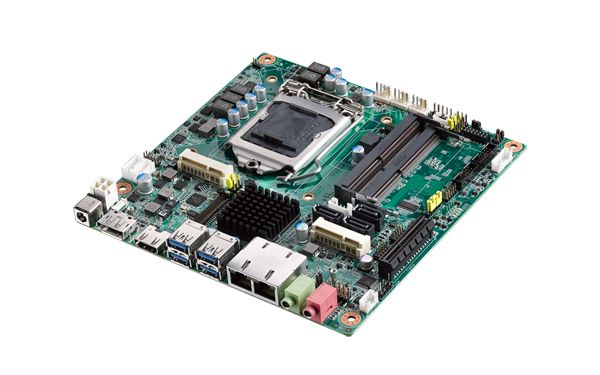

AIMB-285 comes bundled with Advantech’s value added smart software suite WISE-PaaS/RMM, which brings the benefits of cloud computing within reach of many embedded application developers. This embedded motherboard provides the ideal solution for industrial applications such as machine control and self-service machine systems that increase the work efficiency.

AIMB-285 THIN Mini-ITX builds on the standard 170 mm x 170 mm Mini-ITX form factor with only 20mm I/O height (from PCB top side). This low-profile embedded motherboard is compatible with 1U height chassis, and is the perfect choice for integration in panel PCs and digital signage systems.

AIMB-285 comes with abundant connectivity for multiple I/O including 4 x USB 3.0, 4 x USB 2.0, 3 x SATAIII, 2 x COM, 1 x PCIe x4, and 2 x MiniPCIe (F/S x 1; H/S x1) for expansion. AIMB-285 also comes with dual PCI Express based Gigabit Ethernet ports (Realtek RTL8111G) delivering up to 1000 Mbps of bandwidth for network-intensive applications. AIMB-285 supports dual channel DDR4 SO-DIMM memory up to 32GB and 8-bit digital programmable I/O reserved onboard.

AIMB-285 supports dual display output with 4K resolution for application in digital signage systems. AIMB-285 supports two independent displays, either in clone mode or extended mode using VGA, HDMI1.4, LVDS and DisplayPort1.2.

The output resolution for HDMI 1.4 & Displayport 1.2 is up to 4K2K, making AIMB-285 ideal for high-end applications which require stunning graphics and imaging. AIMB-285 is compliant with ESD Level 4 protection which is perfect for medical application requirements and electrical signal measurement devices.
