Axiomtek’s PICO312- Pico-ITX SBC with Intel Apollo Lake SoC

Published: Feb 16,2017

549 Read

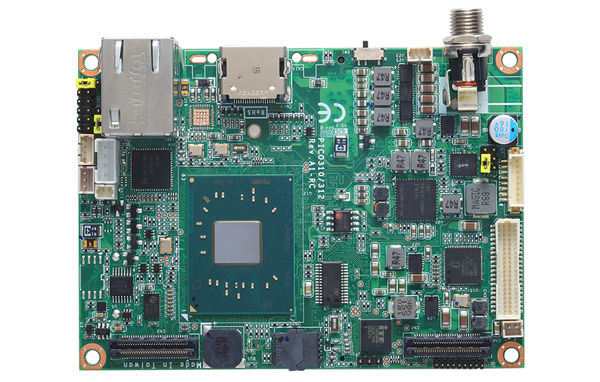

Axiomtek is introducing PICO312, a palm-sized fanless pico-ITX motherboard built with the latest 14 nm quad-core Intel Pentium processor N4200 or dual-core Celeron processor N3350 (codename: Apollo Lake SoC). One 204-pin DDR3L-1867 SO-DIMM socket supports system memory up to 8GB. The tiny 2.5” pico-ITX embedded board features Intel Gen9 graphics engine bringing a true high definition visual experience with dual display configurations through one LVDS and choice of one VGA or HDMI.

More on This

A Desktop Network Appliance Platform Built on Intel Denverton Supporting Intel QAT – NA362

Axiomtek is announcing the NA362, its latest compact network appliance platform powered by the low power consumption Intel Atom processor C3538/C3758 (Codename: Denverton)...

Axiomtek’s COM Express Type 10 Mini Module Offers High Graphics Capability- CEM311

Axiomtek introduces the CEM311, its COM Express Type 10 Mini module featuring Intel Apollo Lake processor, high graphics capabilities...

In addition, it was designed for special needs of fanless operation under temperature from -20°C to +60°C. Its compact size also suits the PICO312 to various space-constrained embedded applications. This embedded SBC is excellent for any media editing, imaging, graphics and video intensive applications popular in industrial IoT field.

“The newest Intel Apollo Lake-based 2.5-inch embedded motherboard, PICO312, features a full-sized PCI Express Mini Card slot in support of mSATA and a pair of expansion connectors with additional signals including one PCIe x1 lane, one LPC, one DDI, four USB 3.0 ports, one SMBus and one HD audio, giving this SBC high expandability to meet all requirements,” said Ken Lin, product manager of Product PM Division at Axiomtek.

The PICO312 comes with advanced connectivity including one USB 2.0 port, one Gigabit Ethernet (built-in Intel Ethernet controller i211AT), and one SATA-600 interface. To ensure reliable operation, the Pico-ITX 2.5-inch motherboard also utilizes advantages of Watchdog Timer to detect and recover from computer malfunctions; and that of hardware to monitor temperature, voltage, fan speed, and more.

Moreover, the I2C connector is available as a communication protocol to connect Axiomtek’s different battery solutions with AXView - Axiomtek’s intelligent remote management software - to monitor battery status.
