Accelerating IoT Development with Axiomtek’s IIoT Gateway: ICO300-83B

Published: Sep 26,2017

583 Read

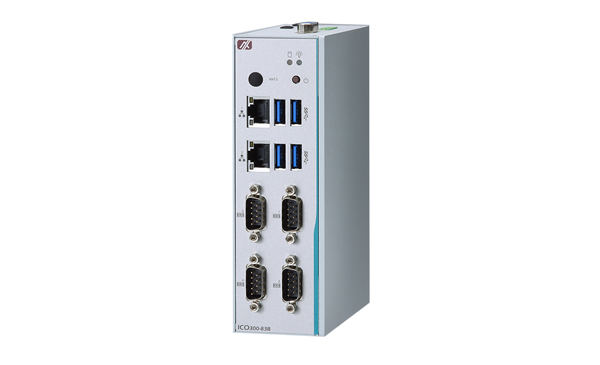

Axiomtek has announced the ICO300-83B, a rugged DIN-rail fanless embedded system powered by the low-power consumption Intel Celeron processor N3350 (Formerly codename: Apollo Lake). The DIN-rail industrial IoT gateway featuring reliable operation, sufficient storage, and rich I/O options is an ideal solution for smart energy and smart automation fields.

More on This

Axiomtek Announces IFB125, a Compact, Rugged RISC-based Industrial IoT Gateway

Axiomtek announced the launch of its robust RISC-based DIN-rail industrial IoT gateway, IFB125, which is powered by the low-power Freescale i...

Axiomtek’s MPC102-845 – EN 60601-1 Certified 10.4” Medical-grade Touch Panel PC

Axiomtek announced its newest EN 60601-1 certified 10.4” medical-grade panel PC, the MPC102-845. This compact medical ...

ICO300-83B’s proven rugged construction ensures harsh operating conditions with an extended temperature range of -20°C to 70°C (-40°C to +70°C for option), a wide voltage range of 12V-24V DC power input with overvoltage and reverse protection, and up to 2G vibration endurance. It supports one DDR3L-1866 SO-DIMM slot with up to 8 GB of system memory. Additionally, the ICO300-83B is equipped with two full-size PCI Express Mini Card slots, one for a mSATA storage card and another for 2.5 SATA drive – allowing it to provide flexible communication and data transfer options for use as an IIoT gateway.

The Intel Apollo Lake-based ICO300-83B comes with rich I/O connectivity while measuring only 31 x 100 x 125 mm. The I/O interfaces include four RS-232/422/485 (two isolated RS-232/422/485 or four isolated RS-232/422/485 ports for option), four USB 3.0 ports, two Gigabit Ethernet (Intel i211AT for ICO300-83B, Intel i210IT for ICO300-83B-WT), one VGA (HDMI for option), and one 8-bit programmable female DIO connector.

The wide range 12V-24V DC terminal block power input with overvoltage and reverse protection can lower the risk of data loss. Furthermore, the Intel Atom-based DIN-rail IIoT gateway runs well with Windows 10 IoT and Linux operating systems. It also supports Axiomtek’s exclusive AXView 2.0 software, offering smart hardware monitoring and remote management features.
