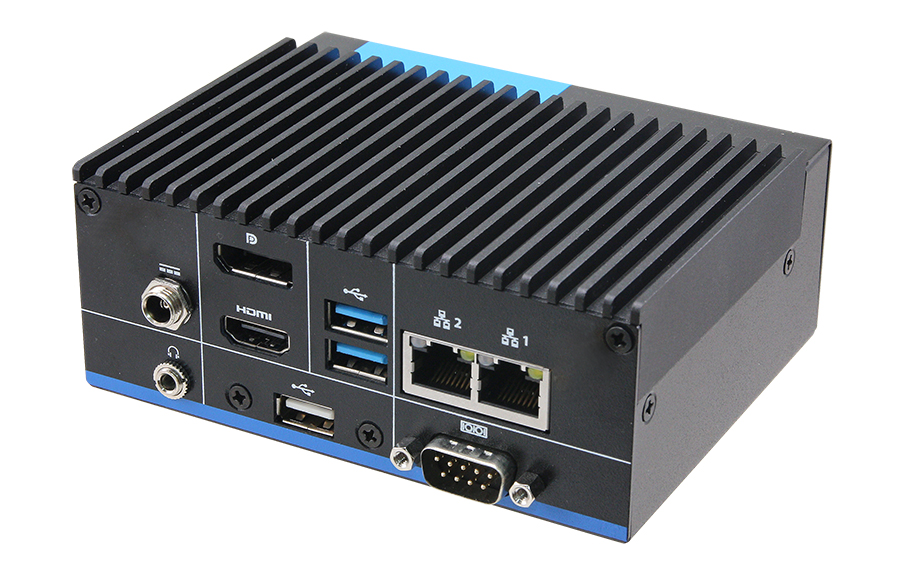

ECS-APCL features palm-size 120.6 (L) x 95.2 (W) x 49.8 (H) mm, the lightweight and compact design being ideal for various application markets with multi-connectivity interfaces. The basic configuration is one 204-pin DDR3L 4GB RAM and 64GB M.2 SSD installed. The I/O deployment includes one HDMI, one DP++ enabled dual display, two USB 3.0 ports, two USB 2.0 ports, one RS-232, and two Intel Gigabit LAN ports provide ease of connectivity as a standalone system.

Besides, there are two SMA connectors reserved for the WIFI antenna, which is an optional add-on. DIN rail kit and wall mount kit also being optional for customers to order. ECS-APCL powered by Intel Celeron Quad Core J3455 processor with enhanced system performance while being cost-effective for most of the application markets such as digital signage, self-ordering system, public information system, etc.
