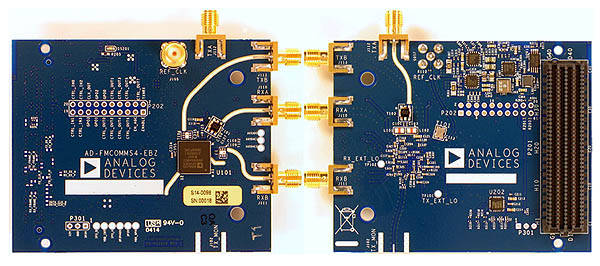

The AD-FMCOMMS4-EBZ is a transceiver FMC module and the newest addition to Analog Devices’ expanding portfolio of single-channel SDR solutions. It includes the new AD9364 RF Transceiver IC in a cost-effective 1 x 1 SDR rapid prototyping FMC module. The AD-FMCOMMS3-EBZ is also a transceiver FMC module and was engineered for 70 MHz to 6 GHz wideband tuning applications such as hand-held and whitespace radios. It is built around the AD9361 RF transceiver on a 2 X 2 SDR rapid prototyping module joining the previously announced AD-FMCCOMMS2-EBZ FMC module in the dual channel product portfolio.

The new Analog Devices FMC modules include all of the HDL (hardware description language) code and device drivers needed for designers to quickly get their SDR platform up and running on the bench to reduce system development time and risk. For more information on ADI’s SDR solutions, which include RF Agile Transceiver ICs, FMC rapid prototyping platforms and a variety of discrete components visit SDR Revolution.

Features:

• Software tunable across wide frequency range (70 MHz to 6.0 GHz) with a channel bandwidth of <200 kHz to 56 MHz.

• Phase and frequency synchronization on both transmit and receive paths

• Allows high channel density

• Powered from single FMC connector

• Supports MIMO radio, with less than 1 sample sync on both ADC and DAC

• Includes schematics, layout, BOM, HDL, Linux drivers and application software

• Supports add on cards for spectrum specific designs (PA, LNA, etc.)
