“Optical cable routing grows increasingly challenging when installing hundreds of fibers in dense optical patch panels,” states Eve Leal, product manager, Molex.

“FlexiBend MPO /MTP flexible-boot cable assemblies help solve cable routing issues by giving installers the ability to bend and direct the exiting fiber in any direction within tight configurations like equipment cabinets and high-density racks.”

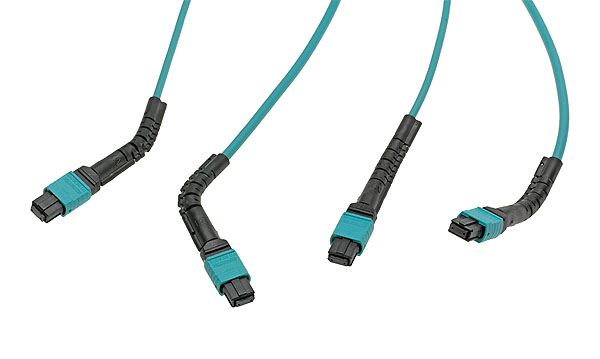

Molex FlexiBend assemblies are designed with strain-relief boots that use a flexible and durable steel internal wire which allows an installer to position the boot in place. The “stay-in-place” boot provides strain-relief, but can easily be repositioned without disconnection in order to modify routing requirements while the cable is in service.

Available in 12- and 24-fiber round cable options, FlexiBend is compatible with any MPO receptacle or active QSFP, CXP and CFP modules. Singlemode and multimode cables provide options for transmission link distances using OM3, OM4, OS1 and OS2 fibers. MPO/MTP FlexiBend boot cables have been mechanically tested to GR-1435, ISSUE 2 specification to ensure product performance over 25 bends in various positions.

“Manufacturers and installers of high density hubs, router and server equipment need the right tools to effectively manage cable routing in compact spaces. Designed to be bent by hand, the round cable MPO/MTP FlexiBend boots can be positioned as needed—0, 45, 90 degrees—for easier installation and maintenance of cable plant,” adds Leal.

Feartures:

－ Bendable strain-relief boots designed to secure any configuration, from straight to 90°

－ 12- and 24-fiber round cable options

－ Tested to GR-1435, ISSUE 2 specification

－ Singlemode and multimode cables

－ Rated up to 25 bends in the 0, 45 and 90° positions
