Synchronous Forward MOSFET Driver Eliminates Signal Transformer

Published: Apr 05,2014

85 Read

Linear Technology Corporation announces the LT8311, a high efficiency secondary- side MOSFET driver that operates without the need for primary control in an isolated synchronous forward converter.

More on This

40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...

Dual Input Prioritizer Provides Low Quiescent Current Backup Supply Switchover Solution

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTC4418, a dual input power prioritizer for 2...

The LT8311’s unique preactive mode eliminates the need for a signal transformer for primary to secondary-side communication by sensing signals on the secondary side to control synchronous rectification. This mode reduces

component count and solution size.

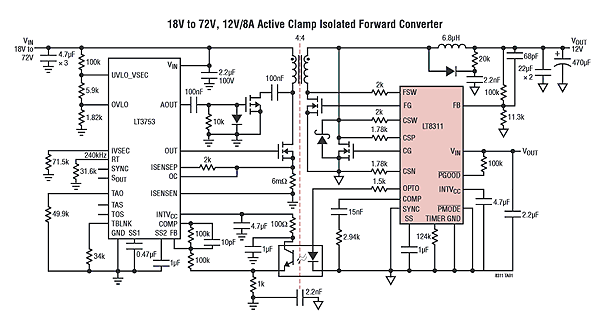

The LT8311 operates over a 3.7V to 30V input voltage range and is used with a primary-side IC, such as the LT3752/-1. The complete forward converter can operate with input voltages ranging from 6.5V up to 400V+ making it ideal for a wide range of applications including hybrid/electric vehicle automotive requirements.

Furthermore, the LT8311 combines a 10mA opto-driver and a feedback loop error amplifier to enable output voltage feedback from the secondary to the primary side. The entire system provides fixed frequency peak current mode control that has excellent line/load regulation and fast transient response. Additional features include a 1.5% reference voltage, a power good monitor and programmable soft-start of the output voltage.

Features:

- Eliminates Signal Transformer for Synchronous Rectification Control

- LT8311 Input Voltage Range:3.7V to 30V

- Operates with Primary-Side IC for up to 400V+ Input Voltages

- 1.5% Reference Voltage

- Onboard 10mA Opto-Coupler Driver

- Output Power Good Indicator

- Programmable Soft-Start of Output Voltage

- Onboard Feedback Error Amplifier

- Extended & Industrial Grades:-40°C to 125°C Operating Junction Temp

- Automotive Temp Grade:-40°C to 150°C Operating Junction Temp

- Military Temp Grade:-55°C to 150°C Operating Junction Temp
