Ultra-Low-Power Boost Regulator for Energy Harvesting Systems

Published: Apr 09,2014

89 Read

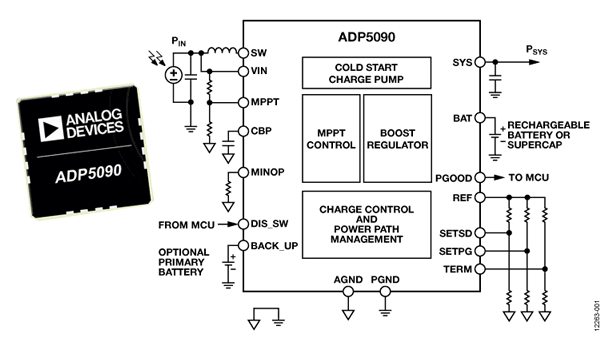

Analog Devices, Inc. introduced the ultra-low-power boost regulator for photovoltaic and thermoelectric energy harvesting systems. The ADP5090 ultra-low-power boost regulator represents a significant leap forward in energy harvesting technology.

More on This

Analog’s $20bn Maxim Deal Another Example of Semiconductor Sector Shakeout, says GlobalData

The global semiconductor industry has too much capacity, too many players and has had declining revenues since the end of 2018...

40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package

Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...

Harnessing “indoor” ambient light as a viable power source has become a growing trend in wireless sensor network applications worldwide.

By delivering efficient conversion of the harvested power (as low as 10 uW), ADP5090 with sub-uW operational losses that stores the maximum amount of energy for future operation.

Features:

- Ultra-low quiescent current hysteretic boost regulator for best ultra-light load efficiency

- Iq (sys) < 350 nA when CBP voltage > MINOP voltage

- Iq (sys) < 250 nA when CBP voltage < MINOP voltage

- Input voltage operation range from 100 mV (minimum) to 3.3 V (maximum)

- Cold start from 380 mV (typical) with charge pump

- Programmable MPPT ratio for PV or TEG energy sources with open voltage sensing(OCV)

- Programmable shutdown point on MINOP pin based on VIN OCV level

- Programmable voltage monitor (2 V to 5.3 V) to support charging different storage

- Optional power path management if a backup primary cell battery is connected to BACK_UP

- See data sheet for additional features
