Single-Slot Eight-Channel 8-bit PCIe Gen2 Digitizer
Published: Apr 17,201437 Read
Agilent Technologies Inc. introduced an eight-channel version of its U5309A 8-bit single-slot PCI Gen2 digitizer with on-board processing, providing unprecedented channel density and minimum footprint at this level of performance.
PXIe Modular Vector Signal Test Solution Accelerates Smarter Micro's Power Amplifier Development
Agilent Technologies Inc. announced that Smarter Micro has selected the Agilent PXIe modular vector signal test solution...
Keysight Technologies Begins Operations
Keysight Technologies, Inc. announced the electronic measurement business of Agilent Technologies has begun operating under the Keysight name...

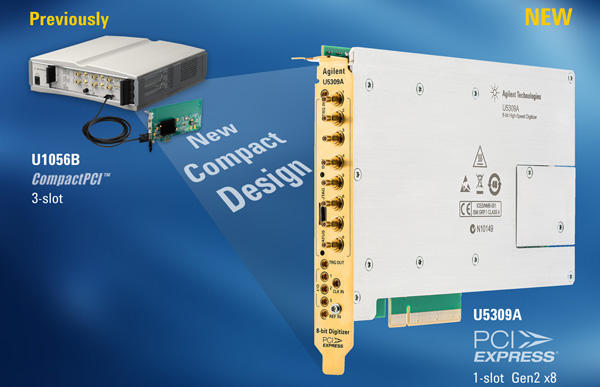

Until now, customers requiring an eight-channel data acquisition system had to order a three-slot cPCI chassis, including two digitizer modules and an interface card to the computer.
Today they can select the single-slot, eight-channel U5309A PCIe digitizer, which has multiple advantages in cost, reliability and performance-as well as the tremendous size reduction into a single slot card. The installation is as simple as a direct plug into the computer PCIe slot, immediately providing eight channels of simultaneous acquisition.
"This eight-channel product should interest universities and research institutes looking for a cost-effective, high-density, very reliable and high-performance high-speed digitizer," said Agilent's Jean-Luc Lehmann, product manager, Embedded OEM.
"New applications will certainly benefit from this product, leveraging its high-channel density-particularly for OEM customers, where small footprint is an important factor."
The eight channels at 1GS/s version increases the offering of the U5309A product recently launched with its two-channel version. Channels can be interleaved to reach a 2 GS/s sampling rate. Applications will also benefit from the high data throughput provided by the Gen2 eight-lane PCIe bus and the possibility to implement real-time signal processing algorithms into the on-board FPGA.
Features:
- Pulsed radar
- Analytical time-of-flight
- Laser ranging / Emission monitoring
- Ultrasonic imaging
- 8-bit resolution and a DC to 500 MHz frequency range, up to 2 GB DDR3 on-board memory and acquisition control using a Xilinx Virtex-6 FPGA
- 2 channels up to 2 GS/s or 8 channels up to 1 GS/s
- Support for loading custom real-time processing
