Low Capacitance, Low Clamping Voltage ESD Protection Devices

Published: Apr 18,2014

24 Read

ON Semiconductor has introduced five new electrostatic discharge (ESD) suppression devices for today’s most advanced interfaces. Patent-pending design techniques and process technology enable these devices to deliver the industry’s lowest capacitance and ESD clamping voltage, suitable for use with extremely high data rate interfaces and small geometry chipsets.

More on This

New Ultra-Low Power Precision Operational Amplifiers for IoT Applications

ON Semiconductor has introduced a family of affordable, precision CMOS operational amplifiers (op amps) that deliver zer...

New 2.1 Megapixel CMOS Image Sensor Delivers 1080p HDR Video for Security Cameras

ON Semiconductor has introduced its latest high performance CMOS image sensor targeted for use in advanced video security cameras...

The ESD8000 transient voltage suppressor (TVS) series achieves maximum capacitance specification of 0.35 pF, and ESD clamping voltages down to 8 volts (V) at 16 amperes (A), equivalent to IEC61000-4-2 Level 4 8 kilovolts (kV) contact.

The extremely low capacitance nearly eliminates any degradation to the data line signal integrity at data rates greater than 10 Gb/s, supporting emerging interfaces such as USB 3.0, USB 3.1, HDMI 2.0, and Thunderbolt. The low clamping voltage improves protection of system level ESD testing as chipsets evolve into geometries below 20 nanometer (nm), making them more sensitive to transient voltage.

“The innovative technology utilized in these new TVS products resets the boundaries in terms of ESD clamping voltage and delivers ultra-low levels of capacitance,” states Gary Straker, vice president and general manager of ON Semiconductor's Protection Solutions products.

“As a result, they can safeguard modern high speed interfaces and integrated circuits based on the latest process technologies from ESD strikes.”

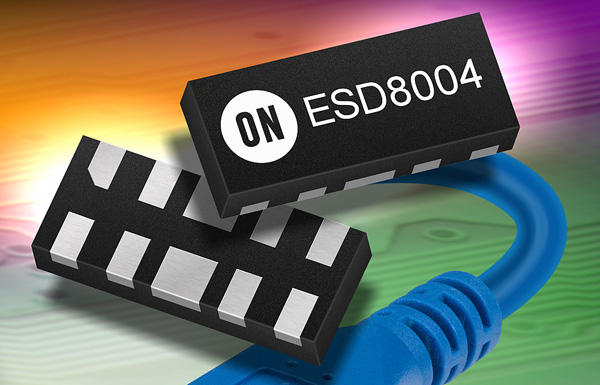

The four-line ESD8004 and ESD8104 can protect two pairs of voltage sensitive high speed data lines in the industry standard footprint of the 2.5 mm x 1 mm UDFN-10 package, making them suitable for the latest serial interface standards such as USB 3.0, HDMI 2.0, and eSATA. The flow-through style package enables easy printed circuit board layout and the matched trace lengths necessary to maintain consistent impedance between high speed differential lines.

The ESD8008 integrates eight lines, or four differential pairs, into a single package for HDMI, DisplayPort, and V-by-One HS interfaces.

The six-line ESD8006 TVS is optimized for protecting the fastest interfaces operating at 10 Gb/s such as Thunderbolt and USB 3.1. These devices have a capacitance of 0.25 pF and utilize single connect flow through routing packages which eliminates the “no connect” pin commonly found on other flow through packages, ensuring minimal parasitic impact to the data line and signal integrity.

The ESD8040 is designed specifically to provide a full function integrated ESD protection device for the HDMI interface and Display Port IOs. This device optimizes pin placement and routing to provide 14 lines of protection required to serve all data, power, and control lines of the interface in an innovative, space saving package that still maintains single connect flow through routing on the high speed lines.

The 14 lines of fully integrated protection in a single package, combined with industry leading performance, make this an ideal solution to protect the challenging HDMI 2.0 interface. The ESD8040 is also backwards compatible with HDMI 1.3 and 1.4.
