Buck Converter Handles Fast-Changing Loads
Published: Apr 28,201420 Read

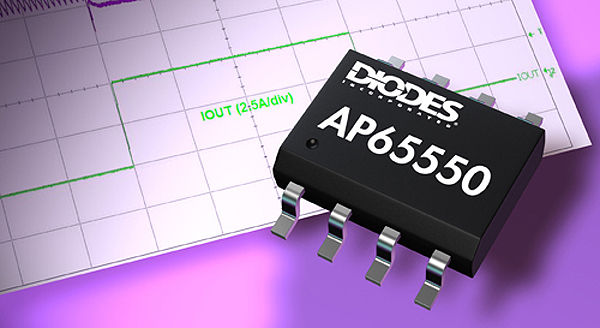

Diodes Incorporated introduced a synchronous buck converter designed to optimize transient response in low-voltage TV and monitor applications. Based on an adaptive constant on-time control algorithm, the 5A-rated AP65550 quickly reacts to rapid changes in load conditions, guaranteeing a minimal drop in output voltage.
Diodes Introduces World’s First Power Switch to Support USB Type-C
The DPS1133 single-channel power switch introduced by Diodes Incorporated is the world’s first high-voltage power swit...
Triac-Dimmable LED Controller/Driver Design Platform from Diodes Drives LED Lamps up to 25W
Diodes Incorporated introduced the AL1692. This LED controller/driver is a platform-based design solution for triac-dimmable LED lamps...
Managing wide variations in input/output voltage ratios, the device control algorithm also helps minimize external component count and enables the use of both low and ultra-low equivalent series resistance capacitors. The converter is available in the SO-8EP package and suitable for 5V, 9V and 12V bus systems, due to its stable 4.5V to 18V operating voltage range.
The buck converter’s automatic light-load efficiency-improvement feature ensures seamless transition between continuous conduction mode at higher loads and discontinuous conduction mode at lighter loads. This helps designers comply with low power consumption regulations and achieves operating efficiencies as high as 92%.
To protect downstream components from damage and premature aging, the converter integrates a complete suite of protection features, including under- voltage lockout, thermal shutdown, over-current protection and programmable soft-start.
Features:
- Fixed Frequency Emulated Constant On-time Control
- Good Stability Independent of the Output Capacitor ESR
- Fast Load Transient Response
- Synchronous Rectification: 65mΩ Internal High-side Switch and 36mΩ Internal Low-side Switch
- Wide Input Voltage Range: 4.5V to 18V
- Output Voltage Range: 0.76V to 6V
- 5A Continuous Output Current
- 650kHz Switching Frequency
- Built-in Over Current Limit
- Built-in Thermal Shutdown Protection
- Programmable Soft-start
- Pre-biased Start-up
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
