Cable gateway suppliers can use the reference design or work directly with Lantiq to integrate the DUSLIC-xT into their system designs based on Intel Puma 6 an Intel Atom based, DOCSIS 3.0 compliant SoC which can reach up to 1.2 Gbps downstream by bonding up to 24 DOCSIS channels and up to 240 Mbps upstream by bonding up to 8 DOCSIS return channels.

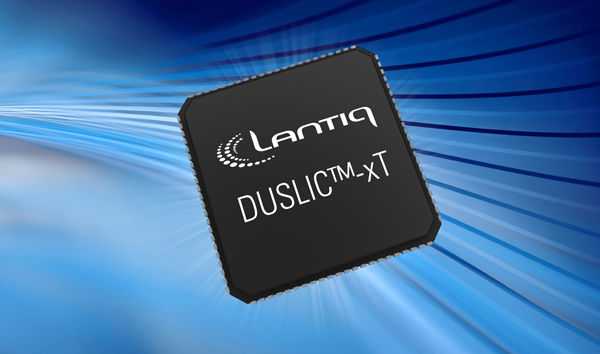

DUSLIC-xT is a single package CODEC/SLIC that provides all necessary functions for single or dual voice line termination at the customer premise. It is a cost and footprint optimized solution for implementation of the FXS (Foreign Exchange Subscriber) interface required to support analog fixed line phone service.

Features:

－ Leading Bill-of-Material (BOM) savings, with port costs below US 30 cents for dual-line termination, achieved in part by eliminating duplicated external components (i.e., power conversion and line protection).

－ Lowest power consumption of available voice solutions, which helps manufacturers meet stringent Code of Conduct requirements, while using a smaller power supply to further improve system design and cost.

－ Support for industry standard (GR-909) line test requirements and additional unique tests such as electronic ring detection to validate lines with no attached handset.
