30 V, 12 V VGS P-Channel MOSFET Offers Industry's Lowest RDS(ON) in Its Class

Published: Apr 30,2014

101 Read

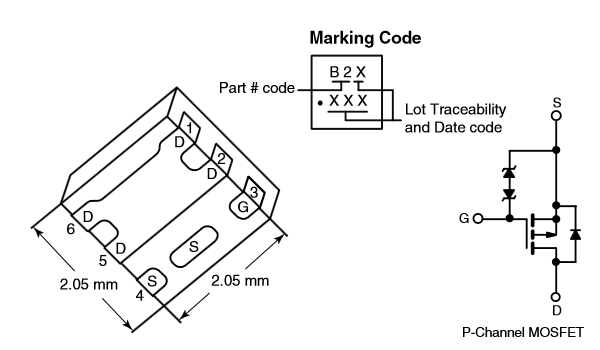

Vishay Intertechnology introduced a new -30 V, 12 V VGS p-channel TrenchFET power MOSFET in the ultra-compact, thermally enhanced PowerPAK SC-70 package. With the industry's lowest on-resistance at -4.5 V and -2.5 V gate drives for a -30 V device in the 2 mm by 2 mm footprint area, the SiA453EDJ is designed to save space and increase power efficiency in portable electronics.

More on This

New Vishay Intertechnology Wireless Charging Coils Offer Direct Replacements for EOL Devices

Vishay Intertechnology introduced new powdered iron based, WPC-compliant (Wireless Power Consortium) wireless charging c...

Vishay Intertechnology Introduces New Commercial Inductors in Compact 1212 Case Size

Vishay Intertechnology, Inc. introduced three new commercial IHLP low profile, high current inductors in the 3.3 mm by 3...

The -30 V VDS of the Vishay Siliconix device released today provides the headroom needed for over-voltage spikes, while its 12 V VGS enables lower on-resistance ratings of -3.7 V and -2.5 V for ultra-portable, battery-operated applications.

The MOSFET is optimized for load and input over-voltage protection switches, battery chargers, and DC/DC converters in smartphones, tablet PCs, mobile computing devices, non-implantable portable healthcare products, hard disk drives, and handheld consumer electronics including electric toothbrushes, shavers, scanners, and RFID readers.

For these applications, the SiA453EDJ offers extremely low on-resistance of 18.5 mΩ (-10 V), 23.5 mΩ (-4.5 V), 26.0 mΩ (-3.7 V), and 37.7 mΩ (-2.5 V), and provides built-in ESD protection of 4000 V.

The SiA453EDJ's on-resistance at -4.5 V is 36 % lower than the closest competing -30 V device, and 50 % lower than the closest competing device with a 12 V VGS. The MOSFET's on-resistance at -2.5 V is 46 % lower than the next-best 12 V VGS device. These industry-low values allow designers to achieve lower voltage drops in their circuits and promote more efficient use of power and longer battery run times, while the device's compact PowerPAK SC-70 package saves critical PCB space.

The MOSFET is 100 % Rg and UIS tested, halogen-free according to the JEDEC JS709A definition, and compliant to RoHS Directive 2011/65/EU.
