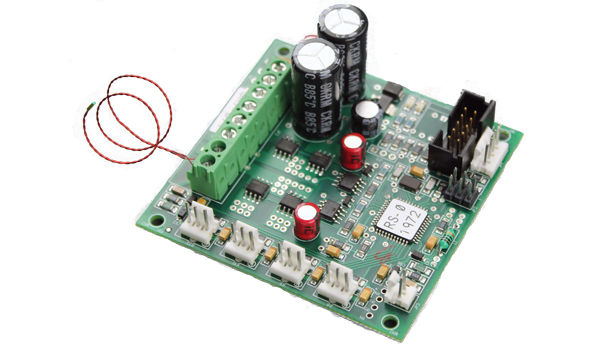

The H bridge control provides a seamless transition between heating and cooling, eliminating dead spots. A red LED for heat and green LED for cooling indicate mode. Pulse Width Modulation controls the power level in the thermoelectric module at a base frequency of 900Hz. Power resolution is one of ±255 steps in the load circuit control.

ven Industries supplies custom temperature controllers and sensors that serve an array of clients, from aerospace, automotive, biomedical, defense markets, medical and semiconductor.

From industrial temperature controllers to programmable sensors, Oven Industries creates many detailed and customized solutions for clients, designed by an expertly trained staff of engineers.

Features:

－ Solid State H-Bridge Control

－ Bi-Directional Control (Seamless Transition)

－ Proportional Integral control algorithm

－ Pulse width modulated output

－ TTL to USB communication via optional OI-TTL-Cable.

－ Support and Digital control through included GUI & DLL.
