Buck Controller Incorporated Manages High POL Current
Published: May 06,2014261 Read

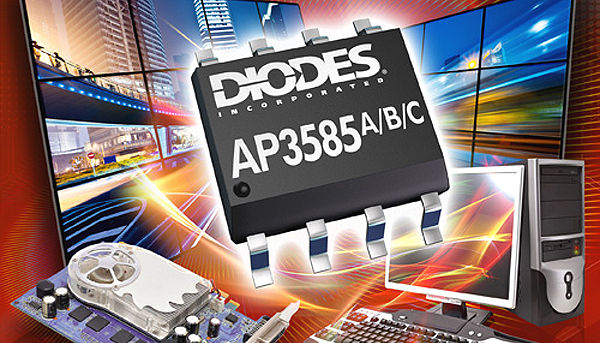

Diodes Incorporated introduced a single-phase synchronous buck PWM controller series to meet the rigors of high-current desktop PC applications. Producing a continuous current of 25A, the AP3585 devices help simplify the design of distributed power architectures serving memory arrays and graphics processing units.
Diodes Introduces World’s First Power Switch to Support USB Type-C
The DPS1133 single-channel power switch introduced by Diodes Incorporated is the world’s first high-voltage power swit...
Triac-Dimmable LED Controller/Driver Design Platform from Diodes Drives LED Lamps up to 25W
Diodes Incorporated introduced the AL1692. This LED controller/driver is a platform-based design solution for triac-dimmable LED lamps...
Offered in the compact and thermally efficient SO-8 and SO-8EP packages, the
AP3585 series provides single feedback loop voltage-mode control, and perates
from a supply of between 4.5V to 13.2V, delivering a high-quality output from as low as 0.6V up to 80% VIN.
The integration of a 10MHz error amplifier with a 6V/μs slew means the buck
controllers exhibit a high converter bandwidth and a fast transient response.
The devices have fixed oscillator frequencies of either 200kHz or 300kHz and
feature a high level of integration, which helps to reduce the overall size and
cost of power supplies.
With its built-in 12V+12V bootstrapped MOSFET driver and companion bootstrap diode, the AP3585 is able to achieve greater than 90% efficient power
conversion while simplifying circuit design and minimizing the external part
count.
The controllers feature comprehensive fault protection, consistent with their
high-current operating capabilities, including lossless programmable overcurrent protection, under- and over-voltage protection, soft-start functionality and thermal shutdown.
