High-performance DACs reduce board space and lower system costs, while increasing accuracy
Published: May 18,2014246 Read
Texas Instruments (TI) introduced a new family of digital-to-analog converters (DACs) that enables engineers to increase the accuracy and performance of programmable logic controller (PLC) I/O modules, field sensors and transmitters, and building automation systems, while decreasing overall system size and cost.
Smallest Data Converters Deliver High Integration and Performance
Texas Instruments (TI) introduced four tiny precision data converters, each the industry’s smallest in its class. The ...
TI Introduces a New Family of LED Drivers with 12-bit PWM, 29-kHz Dimming Frequency
First 12-bit, 29-kHz RGB LED Driver Family Enables Vivid Color and Seamless Animation with Zero Audible Noise Texas I...

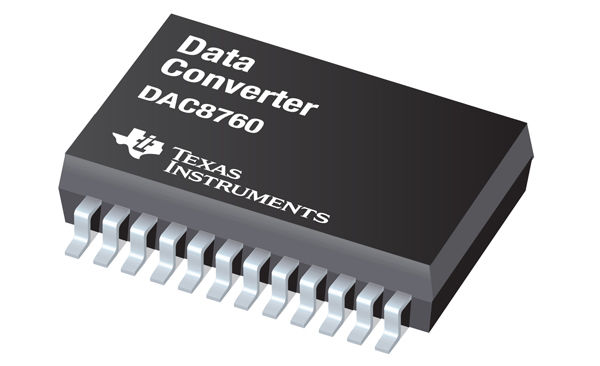

The DAC8760 family is also the industry's first to provide simultaneous voltage and current outputs, giving system designers the flexibility to use either one or both outputs.
Features:
- Current Output: 4 mA to 20 mA;
0 mA to 20 mA; 0 mA to 24 mA
- Voltage Output:0 V to 5 V; 0 V to 10 V; ±5 V; ±10 V/0 V to 5.5 V; 0 V to 11 V; ±5.5 V; ±11 V
(10% Overrange)
- ±0.1% FSR Total Unadjusted Error (TUE) Max
- DNL: ±1 LSB Max
- Simultaneous Voltage and Current Output
- Internal 5-V Reference (10 ppm/°C, max)
- Internal 4.6-V Power-Supply Output
- CRC Check and Watchdog Timer
- Thermal Alarm
- Open Alarm, Short Current Limit
- Wide Temperature Range: –40°C to +125°C
- 6-mm × 6-mm QFN-40; TSSOP-24 Packages
