Linear Technology Corporation introduces the LTM2884, a USB μModule (micromodule) Isolator that combines USB data communications and USB power, and guards against ground-to-ground differentials and large common mode transients. The rugged interface and isolation makes the LTM2884 ideal for systems implementing USB in harsh industrial or medical environments where protection from ground differences is required.
40VIN, 2A Silent Switcher µModule Regulator in 6.25mm x 4mm BGA Package
Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTM8063, a 40VIN, 2A µModule step-down regulator in a tiny 6...
Dual Input Prioritizer Provides Low Quiescent Current Backup Supply Switchover Solution
Analog Devices, Inc., which recently acquired Linear Technology Corporation, announces the LTC4418, a dual input power prioritizer for 2...

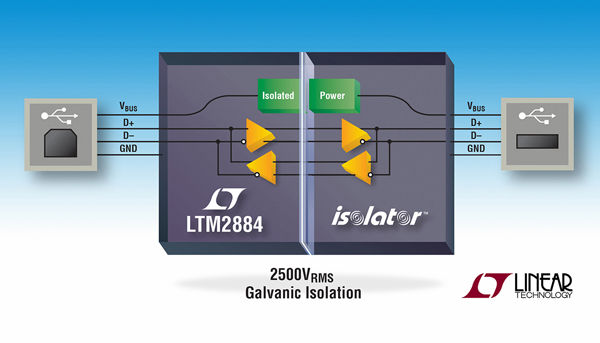

The LTM2884 separates grounds by isolating a pair of USB signal transceivers using internal inductive signal isolation, providing 2500VRMS isolation plus superior common mode transient rejection of >30kV/μs.
The LTM2884 features an integrated, low EMI, external or bus powered, DC/DC converter that powers the isolated transceiver and provides up to 2.5W of isolated power for USB peripherals or hub/host controllers. The unique automatic bus speed detection feature allows the LTM2884 to be used in hub/host/bus isolation applications.
Integrated downstream facing pull-down resistors and upstream facing pull-up resistors are automatically configured to match the speed of the downstream device, enabling the LTM2884 to monitor and report bus speeds to the host.
With 2500VRMS of galvanic isolation, integrated power and USB 2.0 compatible transceivers, the LTM2884 requires no external components and is a complete μModule solution for isolated USB communications.
The LTM2884 is suitable for a wide range of applications, including host, hub and peripheral device isolation, as well as USB inline bus isolation. The ±15kV ESD-protected transceivers operate at USB 2.0 full speed (12Mbps) and low speed (1.5Mbps). A suspend mode monitors for inactivity and reduces VBUS current to less than 2.0mA. The integrated DC/DC converter is capable of supplying 2.5W when connected to an external high voltage supply or 1W when connected to the USB VBUS supply.
Features:
- Isolated USB Transceiver: 2500VRMS for 1 Minute
- USB 2.0 Full Speed and Low Speed Compatible
- Integrated Isolated DC/DC Converter, External or Bus Powered
- Auto-Configuration of Bus Speed
- 2.5W (500mA at 5V) Output Power from External Input Supply (VCC = 8.6V to 16.5V)
- 1W (200mA at 5V) Output Power from USB Bus Supply (VBUS)
- 3.3V LDO Output Supply Signal References VLO, VLO2
- High Common Mode Transient Immunity: 30kV/μs
- ESD: ±15kV HBM on USB Interface Pins
- 15mm × 15mm × 5mm Surface Mount BGA Package
